When you go for AWS EC2 instances to host your PostgreSQL deployments and you want to rapidly clone PostgreSQL instances for development or testing purposes you can make use of AWS EBS snapshots. In this post we’ll look at how you can quickly spin up EC2 instances that use these snapshots as a base for new PostgreSQL clusters. Although we’ll be using the AWS console to show how this can be done you should use some automation around this to make it really rapid. There are several options you can go for like the AWS command line interface, Terraform, AWS CloudFormation, Ansible and many more.

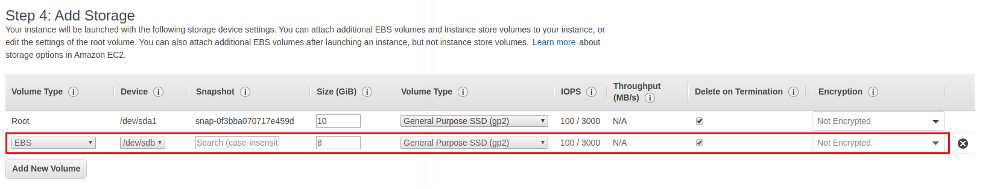

In the last posts about AWS we mainly used the CentOS, Red Hat or Amazon Linux 2 AMIs. In this post, just to make it a bit more colorful, we’ll be using SUSE Linux Enterprise 15. The base setup for SLES 15 in AWS is straight forward so not all screenshots will be provided, except this one:
The second EBS volume will be the one for PGDATA and this will also be the one we’ll be using as the source for our snapshots. The second volume will show up as xvdb and not as sdb as it is listed in the above screenshot:
ip-10-0-1-22:/home/ec2-user $ ls -la /dev/xv* brw-rw---- 1 root disk 202, 0 Mar 30 05:50 /dev/xvda brw-rw---- 1 root disk 202, 1 Mar 30 05:50 /dev/xvda1 brw-rw---- 1 root disk 202, 2 Mar 30 05:50 /dev/xvda2 brw-rw---- 1 root disk 202, 3 Mar 30 05:50 /dev/xvda3 brw-rw---- 1 root disk 202, 16 Mar 30 05:50 /dev/xvdb ip-10-0-1-22:/home/ec2-user $ lsblk NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT xvda 202:0 0 10G 0 disk ├─xvda1 202:1 0 2M 0 part ├─xvda2 202:2 0 20M 0 part /boot/efi └─xvda3 202:3 0 10G 0 part / xvdb 202:16 0 30G 0 disk
After a new partition was created on the second device and a file system was created it is now mounted at /u02:
postgres@ip-10-0-1-22:/home/postgres/ [pg122] df -h | grep u02 /dev/xvdb1 30G 63M 30G 1% /u02
Initializing and starting the PostgreSQL cluster:
postgres@ip-10-0-1-22:/home/postgres/ [PG1] initdb -D /u02/pgdata/PG1 postgres@ip-10-0-1-22:/home/postgres/ [PG1] pg_ctl -D /u02/pgdata/PG1/ start -l /dev/null postgres@ip-10-0-1-22:/home/postgres/ [PG1] psql postgres psql (12.2) Type "help" for help. postgres=# select version(); version ------------------------------------------------------------------------------------ PostgreSQL 12.2 on x86_64-pc-linux-gnu, compiled by gcc (SUSE Linux) 7.5.0, 64-bit (1 row) postgres=#
That’s our starting point. Let’s assume we already have an application installed consisting of a few objects and some data:
postgres=# create schema my_app; CREATE SCHEMA postgres=# create table my_app.t1 ( a int, b text, c date ); CREATE TABLE postgres=# create view my_app.v1 as select a,c from my_app.t1; CREATE VIEW postgres=# insert into my_app.t1 (a,b,c) select i, i::text, now() from generate_series(1,1000000) i; INSERT 0 1000000

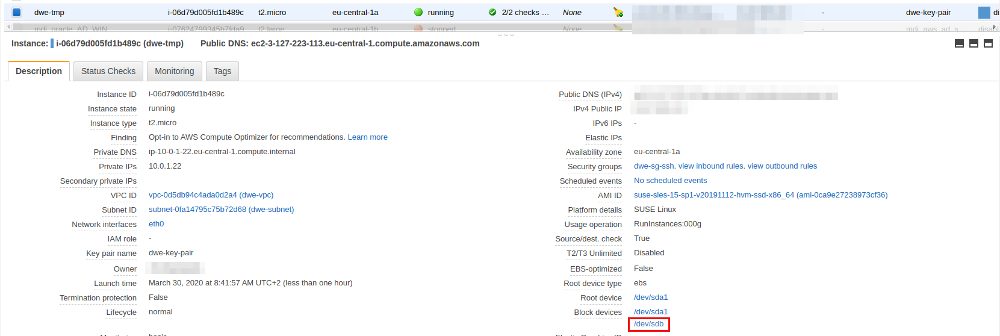

Now we want to clone that for testing purposes, how can we do that? The first step is to create a snapshot of the volume that holds the PostgreSQL cluster. To identify the EBS volume you can follow the link in the AWS console:

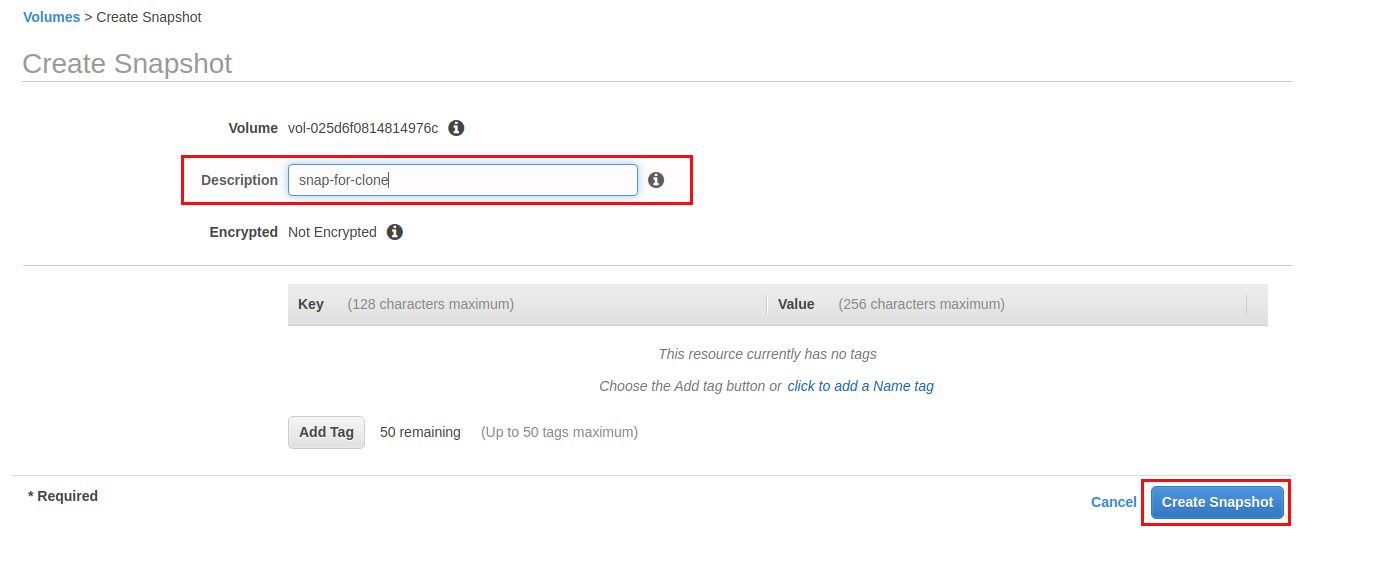

Once you have identified and selected the EBS volume you can create a new snapshot:

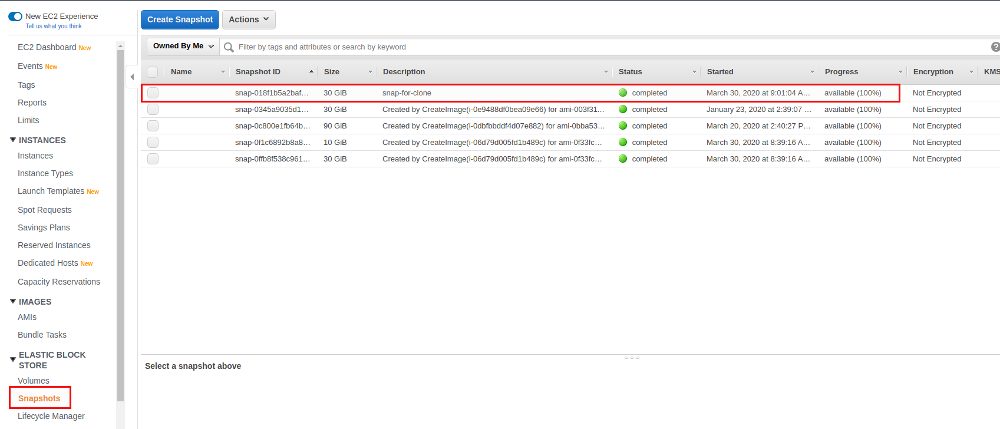

Snapshots can be viewed under the Snapshots section:

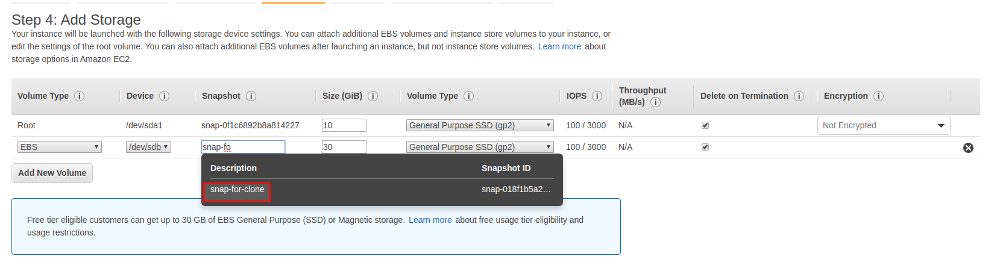

Using that snapshot you can spin up a new instance and reference the snapshot in the storage screen:
Once the new instance is ready all the files in PGDATA are there:
postgres@ip-10-0-1-74:/home/postgres/ [pg122] ls -la /u02/pgdata/PG1/ total 64 drwx------ 20 postgres postgres 4096 Mar 30 06:46 . drwx------ 3 postgres postgres 17 Mar 30 06:44 .. -rw------- 1 postgres postgres 3 Mar 30 06:44 PG_VERSION drwx------ 6 postgres postgres 58 Mar 30 06:49 base drwx------ 2 postgres postgres 4096 Mar 30 06:46 global drwx------ 2 postgres postgres 6 Mar 30 06:44 pg_commit_ts drwx------ 2 postgres postgres 6 Mar 30 06:44 pg_dynshmem -rw------- 1 postgres postgres 4513 Mar 30 06:44 pg_hba.conf -rw------- 1 postgres postgres 1636 Mar 30 06:44 pg_ident.conf drwxr-xr-x 2 postgres postgres 6 Mar 30 06:45 pg_log drwx------ 4 postgres postgres 68 Mar 30 06:53 pg_logical drwx------ 4 postgres postgres 36 Mar 30 06:44 pg_multixact drwx------ 2 postgres postgres 18 Mar 30 06:46 pg_notify drwx------ 2 postgres postgres 6 Mar 30 06:44 pg_replslot drwx------ 2 postgres postgres 6 Mar 30 06:44 pg_serial drwx------ 2 postgres postgres 6 Mar 30 06:44 pg_snapshots drwx------ 2 postgres postgres 6 Mar 30 06:44 pg_stat drwx------ 2 postgres postgres 63 Mar 30 07:00 pg_stat_tmp drwx------ 2 postgres postgres 18 Mar 30 06:44 pg_subtrans drwx------ 2 postgres postgres 6 Mar 30 06:44 pg_tblspc drwx------ 2 postgres postgres 6 Mar 30 06:44 pg_twophase drwx------ 3 postgres postgres 188 Mar 30 06:53 pg_wal drwx------ 2 postgres postgres 18 Mar 30 06:44 pg_xact -rw------- 1 postgres postgres 88 Mar 30 06:44 postgresql.auto.conf -rw------- 1 postgres postgres 26599 Mar 30 06:44 postgresql.conf -rw------- 1 postgres postgres 70 Mar 30 06:46 postmaster.opts -rw------- 1 postgres postgres 81 Mar 30 06:46 postmaster.pid
Startup PostgreSQL and the new clone can be used for any purpose:
postgres@ip-10-0-1-74:/home/postgres/ [pg122] pg_ctl -D /u02/pgdata/PG1/ start postgres@ip-10-0-1-74:/home/postgres/ [pg122] psql postgres psql (12.2) Type "help" for help. postgres=# select count(*) from my_app.t1; count --------- 1000000 (1 row)
Quite easy and fast, especially when automated.
