Virtual Local Area Network (VLAN) have become since several years a standard in enterprise class networks. Most enterprises are now segregating their network, especially for security reasons, between server and user or prod and test or applications and backup and aso. In the new release of ODA we finally get the support for VLAN on the bare metal platform. This article will briefly demonstrate how these are managed using ODAADMCLI.
First of all we have to remember that VLAN is not brand new on ODA. While using ODA HA (X5-2 or X6-2) in virtual mode, which means with OVM, it was already possible to manage VLANs. However this was a bit different than the new feature introduced in ODA 18.104.22.168.0.
First of all the HA platform in virtual mode is running using OAKCLI and not ODACLI with the DCS agent. In background the real difference is that the HA in virtualized mode is using the Linux Bridge Control (more details here). To make it simple, you have a kind of virtual switches (bridges) on which each connected VM, including the ODA BASE, can be connected and get an address on this particular network.
On the bare metal platform the principle is totally different as it is directly based on the VLAN implementation in Linux (802.1q standard) which allows activating VLAN on an interface and tagging the packets with the right VLANID.
The first place where VLAN can be configured on the ODA is during the first network plumbing phase, right after booting or re-imaging the ODA, using the configure-firstnet command.
As shown above the command will ask you if you want to use VLAN or not. Answering YES will then request you to provide the VLANID for the primary network of the ODA and will generate a network interface btbond1.<VLANID>.
How does it looks like in background??
The first layer as always on ODA is a bonding of 2 physical interfaces (here em2 and em3 as I’m using the copper interfaces):
[[email protected] network-scripts]# cat ifcfg-em2 #File created by Oracle development DEVICE=em2 ONBOOT=yes BOOTPROTO=none USERCTL=no TYPE=ETHERNET ETHTOOL_OFFLOAD_OPTS="lro off" IPV6INIT=no NM_CONTROLLED=no PEERDNS=no MASTER=btbond1 SLAVE=yes
Looking to the btbond1 interface we will see that it is configure in active-backup mode BUT without any IP address.
[[email protected] network-scripts]# cat ifcfg-btbond1 #File created by Oracle development DEVICE=btbond1 ONBOOT=yes BOOTPROTO=none USERCTL=no TYPE=BOND BONDING_OPTS="mode=active-backup miimon=100 primary=em2" IPV6INIT=no NM_CONTROLLED=no PEERDNS=no
On top of the bonding configuration, we have then a virtual interface per VLAN. Indeed only one at the beginning as the configure-firstnet generates only the “primary” network of the ODA.
[[email protected] network-scripts]# cat ifcfg-btbond1.54 #ODA_VLAN_CONFIG === #ODA_VLAN_CONFIG Name=vlan54 #ODA_VLAN_CONFIG VlanId=54 #ODA_VLAN_CONFIG VlanInterface=btbond1 #ODA_VLAN_CONFIG Type=VlanType #ODA_VLAN_CONFIG VlanSetupType=public #ODA_VLAN_CONFIG VlanIpAddr=192.168.54.10 #ODA_VLAN_CONFIG VlanNetmask=255.255.255.0 #ODA_VLAN_CONFIG VlanGateway=192.168.54.1 #ODA_VLAN_CONFIG NodeNum=0 #=== DO NOT EDIT ANYTHING ABOVE THIS LINE === DEVICE=btbond1.54 BOOTPROTO=none ONBOOT=yes VLAN=yes NM_CONTROLLED=no IPADDR=192.168.54.10 NETMASK=255.255.255.0 GATEWAY=192.168.54.1
Do not look for the VLANID in the configuration file (of, except in the comments 😉 ). It is defined by the device/file name.
Once you have your first VLAN you can easily configure additional ones using the command line. Remember that on the DCS stack ODAs you have 2 different CLIs: ODACLI and ODAADMCLI. The VLAN management is done using ODAADMCLI.
So lets have a look to the help:
# odaadmcli -h Usage: odaadmcli <command> <object> [<options>] commands: show|manage|stordiag|power|expand objects : disk|diskgroup|controller|server|processor|memory|iraid| power|cooling|network|storage|fs|raidsyncstatus|env_hw|vlan Usage: odaadmcli show - Shows disk, diskgroup, controller, server, processor, memory, iraid, power, cooling, network, storage, fs, raidsyncstatus, env_hw odaadmcli manage - Manages the OAK repository, diagcollect etc., odaadmcli stordiag - Run storage diagnostic tool on this Node odaadmcli power - Power on|off|status disk odaadmcli expand - Expand storage
Hmmm, looks strange as there is no command CREATE 😯

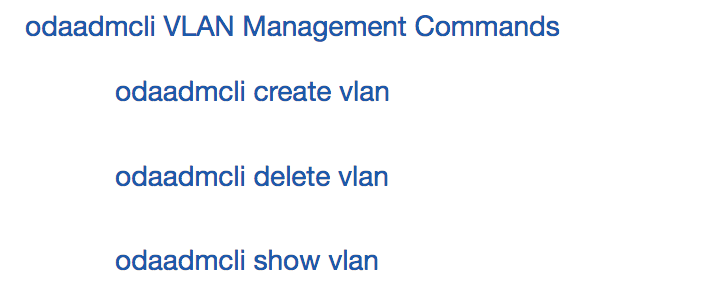

I can SHOW the VLANs but it looks like I can’t CREATE them… Let’s have a look to the online documentation (here)
It looks like the CREATE VLAN command finally exist. A good advice to remember here is that even the inline help of ODACLI and ODAADMCLI are quite good, it is still a good practice to have a look to the online documentation and especially the chapters 14 and 15.
The good news here is that the help for the CREATE command does exist 😉
[[email protected] ~]# odaadmcli create vlan -h odaadmcli create vlan <vlan_name> -vlanid <vlanid> -if <interface> -node <node_num> -setuptype <type> -ip <ip address> -netmask <netmask> -gateway <gateway>, Where: vlan - VLAN name (unique per Node) vlanid - Identifies the ID[valid range: 2 to 4094] to which the VLAN belongs to (unique per Node) interface - Interface on which the VLAN is to be created [Valid interfaces are btbond1] node - Node number < 0 > setuptype - the type of the VLAN setup for [Valid value are: management, database, dataguard, backup, private and other] ip - IP address for the VLAN netmask - Netmask address for the VLAN gateway - Gateway address for the VLAN
I guess it’s now time to try to create a new VLAN.
[[email protected] ~]# odaadmcli create vlan vlan55-backup -vlanid 55 -if btbond1 -node 0 -setuptype backup -ip 192.168.55.10 -netmask 255.255.255.0 -gateway 192.168.55.1 Created Vlan : vlan55-backup
Note that even on a single node ODA (S or M) you must provide the node number. Otherwise you will get the following error message
ERROR : -node is not available
Let check our newly created VLAN:
[[email protected] network-scripts]# odaadmcli show vlan NAME ID INTERFACE CONFIG_TYPE IP_ADDRESS NETMASK GATEWAY NODENUM vlan55-backup 55 btbond1 backup 192.168.55.10 255.255.255.0 192.168.54.1 0
Of course in /etc/sysconfig/network-scripts we will find the corresponding IFCFG file:
[[email protected] network-scripts]# ls -lrt total 248 -rw-r--r--. 1 root root 29853 Apr 12 2016 network-functions-ipv6 -rw-r--r--. 1 root root 14731 Apr 12 2016 network-functions ... ... ... -rw-r--r--. 1 root root 264 Feb 19 11:40 ifcfg-lo -rw-r--r-- 3 root root 194 Feb 19 12:04 ifcfg-em3 -rw-r--r-- 3 root root 194 Feb 19 12:04 ifcfg-em2 -rw-r--r-- 3 root root 169 Feb 19 12:04 ifcfg-em1 drwxr-xr-x 2 root root 4096 Feb 19 12:04 backupifcfgFiles -rw-r--r--. 3 root root 259 Feb 19 12:17 ifcfg-btbond1 -rw-r--r-- 1 root root 538 Feb 19 14:43 ifcfg-btbond1.54 -rw-r--r-- 1 root root 538 Feb 19 15:31 ifcfg-btbond1.55
Should a VLAN not be required anymore, deleting it works straight forward using DELETE VLAN:
[[email protected] network-scripts]# odaadmcli delete vlan vlan55-backup -node 0 Deleted Vlan : vlan55-backup
Easy isn’t it? 😎
Last but not least, for those who deployed their ODA without VLAN do not worry you won’t need to re-image it. Even if the ODA has been deployed without VLAN during the configure-firstnet you can still create VLAN afterwards.
