I was upgrading Netbackup yesterday to version 7.0.1 and faced a quite “funny” issue with the OpsCenter. The installation failed on pre-requirements checks saying that no space was available. Nothing strange at this point…except that we still had about 79GB free space! 🙄
Due to a little NetBackup 7.0 bug, I had to upgrade to version 7.0.1, including OpsCenter, at a customer of mine. The environment NetBackup runs on is a HP Server in SLES 11.0
I must admit that the upgrade itself was pretty handy and went straight forward. Symantec provides 3 tar files with an upgrade script, which implements all of them in a row.
The issue was on patching the OpsCenter files to 7.0.1. I extracted the patch’s tar file in /tmp and stopped all NetBackup services. Then I run the installOpsCenterServerPatch script to start the patching process. This one first makes some pre-checks and unfortunately always came out with the same message:
Verifying base dependencies: Checking OpsCenter Server installation .............................................................................................................. installed CPI ERROR V-9-0-0 Available free space in /var/symantec/ is 0 kbytes and it requires minimum 61064 kbytes to upgrade database. Please create required space and start installation again. installOpsCenterServerPatch log files are saved at /var/VRTS/install/logs/installOpsCenterServerPatch-0exK1y
So I had a look at my disk usage:
netbackup@netbcksrv:~> df -h Filesystem Size Used Avail Use% Mounted on /dev/mapper/sysvg-rootlv 99G 16G 79G 17% / udev 2.0G 116K 2.0G 1% /dev /dev/cciss/c0d0p1 1012M 32M 929M 4% /boot
Hmmm…strange, 79GB of free space, but the OpsCenter patch didn’t see them 😕
Finally, I found the solution in the following Symantec Note:
http://www.symantec.com/business/support/index?page=content&id=TECH140581&key=58330&actp=LIST
During the pre-checks, the scripts runs df -k on the base installation directory. If the mount point name’s length is more than ‘n’ characters (n can vary from one OS to another), df wraps the output and the script can’t get the free space information!!! As the server I was working on uses a logical volume, it typically falls in this case:
netbackup@netbcksrv:~> df -k /usr/openv Filesystem 1K-blocks Used Available Use% Mounted on /dev/mapper/sysvg-rootlv 103212320 16133384 81836056 17% /
The workaround is to run a df -kP to force the POSIX output usage:
netbackup@netbcksrv:~> df -kP /usr/openv Filesystem 1024-blocks Used Available Capacity Mounted on /dev/mapper/sysvg-rootlv 103212320 16133384 81836056 17% /
So how do we implement this in the patch installer?
This is finally pretty simple. Inside the patch folder, go to ./scripts/CPI/plat/ and edit the file Linux.pm. On line 20, replace the command df -k by df -kP.
... $CPI::PLAT{Linux}{DFK}="/bin/df -kl"; $CPI::PLAT{Linux}{DFKA}="/bin/df -kP"; $CPI::PLAT{Linux}{DIFF}="/usr/bin/diff"; ...
Save the file and restart the installation.
... /opt/SYMCOpsCenterServer/bin/startserver /opt/SYMCOpsCenterGUI/bin/startgui.sh
You can access Symantec OpsCenter Patch from the web browser by using the following URL: http://dasv01y/opscenter
Installation log files, summary file, and response file are saved at:
/var/VRTS/install/logs/installOpsCenterServerPatch-oVOJmL
You have new mail in /var/spool/mail/root

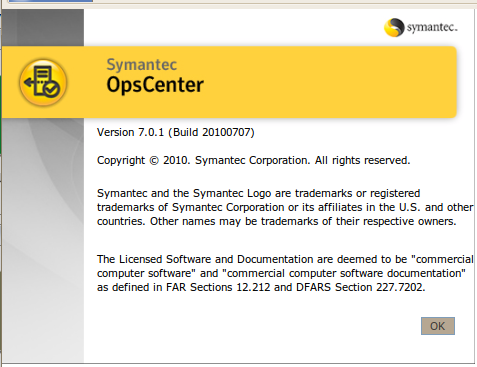

It worked! 🙂
I hope this helps…
