AWX is a web based GUI tool for managing Ansible playbooks. It is the open source upstream project of Red Hat Automation Controller (formerly Ansible Tower) . As for Fedora and RHEL operating systems, the releases of Automation Controller are created from a branch of AWX, which sponsored is by Red Hat.
AWX provides user interface, REST API and task engine, allowing you to manage playbooks, inventories and schedule jobs using a web interface.

In this blog post, we will focus on the installation part only. Configuration and usage will be covered by other ones.

Minikube installation

Starting in with version 18.0, the installation method of AWX moved from Docker to Kubernetes. This is done thanks to the AWX Operator, providing a Kubernetes-native installation method for AWX. For this blog purpose, we will deploy it in a Minikube local Kubernetes environment which is easy to install on a Linux x86-64 system :

joc@jocbox:~$ sudo curl -LO https://storage.googleapis.com/minikube/releases/latest/minikube-linux-amd64
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed

100 66.3M 100 66.3M 0 0 8356k 0 0:00:08 0:00:08 --:--:-- 8941k
joc@jocbox:~$
joc@jocbox:~$ sudo install minikube-linux-amd64 /usr/local/bin/minikube
joc@jocbox:~$



Nothing more to do to have an up & running cluster. Let’s start it :

joc@jocbox:~$ minikube start
😄 minikube v1.24.0 on Linuxmint 20.2
✨ Automatically selected the docker driver. Other choices: kvm2, virtualbox, ssh, none
👍 Starting control plane node minikube in cluster minikube
🚜 Pulling base image ...
💾 Downloading Kubernetes v1.22.3 preload ...
> preloaded-images-k8s-v13-v1...: 501.73 MiB / 501.73 MiB 100.00% 4.58 MiB
> gcr.io/k8s-minikube/kicbase: 355.78 MiB / 355.78 MiB 100.00% 3.02 MiB p/
🔥 Creating docker container (CPUs=2, Memory=3900MB) ...
🐳 Preparing Kubernetes v1.22.3 on Docker 20.10.8 ...
▪ Generating certificates and keys ...
▪ Booting up control plane ...
▪ Configuring RBAC rules ...
🔎 Verifying Kubernetes components...
▪ Using image gcr.io/k8s-minikube/storage-provisioner:v5
🌟 Enabled addons: storage-provisioner, default-storageclass
💡 kubectl not found. If you need it, try: 'minikube kubectl -- get pods -A'
🏄 Done! kubectl is now configured to use "minikube" cluster and "default" namespace by default
joc@jocbox:~$



There are two ways to interact with the Minikube cluster. First one ist to use kubectl that you can install using e.g. the Snap package manager :

joc@jocbox:~$ sudo snap install kubectl --classic
kubectl 1.22.4 from Canonical✓ installed
joc@jocbox:~$



But actually, installing kubectl is not mandatory, since it comes already wrapped inside Minikube. To use it, simply prefix the kubectl commands with “minikube kubectl –“. To save time while writing, why not create an alias :

joc@jocbox:~$ alias kubectl="minikube kubectl --"



To test kubectl, you can use it to list the pods created to run the Kubernetes engine :

joc@jocbox:~$ kubectl get pods -A
NAMESPACE            NAME                                       READY STATUS  RESTARTS    AGE
kube-system          coredns-78fcd69978-cb4z6                   1/1   Running 1 (43m ago) 10h
kube-system          etcd-minikube                              1/1   Running 1 (43m ago) 10h
kube-system          kube-apiserver-minikube                    1/1   Running 1 (43m ago) 10h
kube-system          kube-controller-manager-minikube           1/1   Running 1 (43m ago) 10h
kube-system          kube-proxy-khgb4                           1/1   Running 1 (43m ago) 10h
kube-system          kube-scheduler-minikube                    1/1   Running 1 (43m ago) 10h
kube-system          storage-provisioner                        1/1   Running 3 (42m ago) 10h
kubernetes-dashboard dashboard-metrics-scraper-5594458c94-nphf6 1/1   Running 1 (43m ago) 10h
kubernetes-dashboard kubernetes-dashboard-654cf69797-4dbjh      1/1   Running 1 (43m ago) 10h
joc@jocbox:~$



AWX Operator installation

Let’s move to the AWX Operator deployment into your cluster. The first thing to do is to clone the git repository of the project :

joc@jocbox:~$ git clone https://github.com/ansible/awx-operator.git
Cloning into 'awx-operator'...
remote: Enumerating objects: 5952, done.
remote: Counting objects: 100% (1867/1867), done.
remote: Compressing objects: 100% (362/362), done.
remote: Total 5952 (delta 1673), reused 1505 (delta 1505), pack-reused 4085
Receiving objects: 100% (5952/5952), 1.40 MiB | 7.49 MiB/s, done.
Resolving deltas: 100% (3462/3462), done.
joc@jocbox:~$



Before starting the deployment, it’s better to set the namespace into which you want to deploy (otherwise the Operator will be installed into the default namespace). Then run the “make deploy” command from the repository :

joc@jocbox:~/awx-operator$ export NAMESPACE=awx
joc@jocbox:~/awx-operator$ make deploy
cd config/manager && /home/joc/awx-operator/bin/kustomize edit set image controller=quay.io/ansible/awx-operator:0.14.0
cd config/default && /home/joc/awx-operator/bin/kustomize edit set namespace awx
/home/joc/awx-operator/bin/kustomize build config/default | kubectl apply -f -
namespace/awx created
customresourcedefinition.apiextensions.k8s.io/awxbackups.awx.ansible.com created
customresourcedefinition.apiextensions.k8s.io/awxrestores.awx.ansible.com created
customresourcedefinition.apiextensions.k8s.io/awxs.awx.ansible.com created
serviceaccount/awx-operator-controller-manager created
role.rbac.authorization.k8s.io/awx-operator-leader-election-role created
role.rbac.authorization.k8s.io/awx-operator-manager-role created
clusterrole.rbac.authorization.k8s.io/awx-operator-metrics-reader created
clusterrole.rbac.authorization.k8s.io/awx-operator-proxy-role created
rolebinding.rbac.authorization.k8s.io/awx-operator-leader-election-rolebinding created
rolebinding.rbac.authorization.k8s.io/awx-operator-manager-rolebinding created
clusterrolebinding.rbac.authorization.k8s.io/awx-operator-proxy-rolebinding created
configmap/awx-operator-manager-config created
service/awx-operator-controller-manager-metrics-service created
deployment.apps/awx-operator-controller-manager created
joc@jocbox:~/awx-operator$



Hint : you can now configure you current context to run by default all kubectl commands against your new namespace :

joc@jocbox:~$ kubectl config set-context --current --namespace=awx
Context "minikube" modified.
joc@jocbox:~$



After few minutes, the AWX Operator is running into a new pod :

joc@jocbox:~/awx-operator$ kubectl get pods
NAME                                             READY   STATUS    RESTARTS     AGE
awx-operator-controller-manager-68d787cfbd-xmshs 2/2     Running   2 (62m ago)  8h
joc@jocbox:~/awx-operator$



AWX deployment

The AWX installation is very straight forward. If you want to give a specific name to your AWX deployment, edit the metadata.name section in the awx-demo.yml file :

joc@jocbox:~/awx-operator$ cat awx-demo.yml
---
apiVersion: awx.ansible.com/v1beta1
kind: AWX
metadata:
  name: awx-joc
spec:
  service_type: nodeport
joc@jocbox:~/awx-operator$



Finally,  apply the yaml file to create the AWX instance in your cluster :

joc@jocbox:~/awx-operator$ kubectl apply -f awx-demo.yml
awx.awx.ansible.com/awx-joc created
joc@jocbox:~/awx-operator$



Once done, you can check the new pods and services :

joc@jocbox:~/awx-operator$ kubectl get pods
NAME                                               READY   STATUS    RESTARTS       AGE
awx-joc-9d964f6bc-98d99                            4/4     Running   12 (12h ago)   5d20h
awx-joc-postgres-0                                 1/1     Running   3 (12h ago)    5d20h
awx-operator-controller-manager-68d787cfbd-xmshs   2/2     Running   6 (12h ago)    5d20h

joc@jocbox:~/awx-operator$ kubectl get svc
NAME                                             TYPE       CLUSTER-IP      EXTERNAL-IP  PORT(S)       AGE
awx-joc-postgres                                 ClusterIP  None            <none>       5432/TCP      5d20h
awx-joc-service                                  NodePort   10.108.183.108  <none>       80:32283/TCP  5d20h
awx-operator-controller-manager-metrics-service  ClusterIP  10.102.106.17   <none>       8443/TCP      5d21h
joc@jocbox:~/awx-operator$



Run the following command to get the URL of the web interface

joc@jocbox:~/awx-operator$ minikube service awx-joc-service --url -n awx
http://192.168.49.2:32283
joc@jocbox:~/awx-operator$

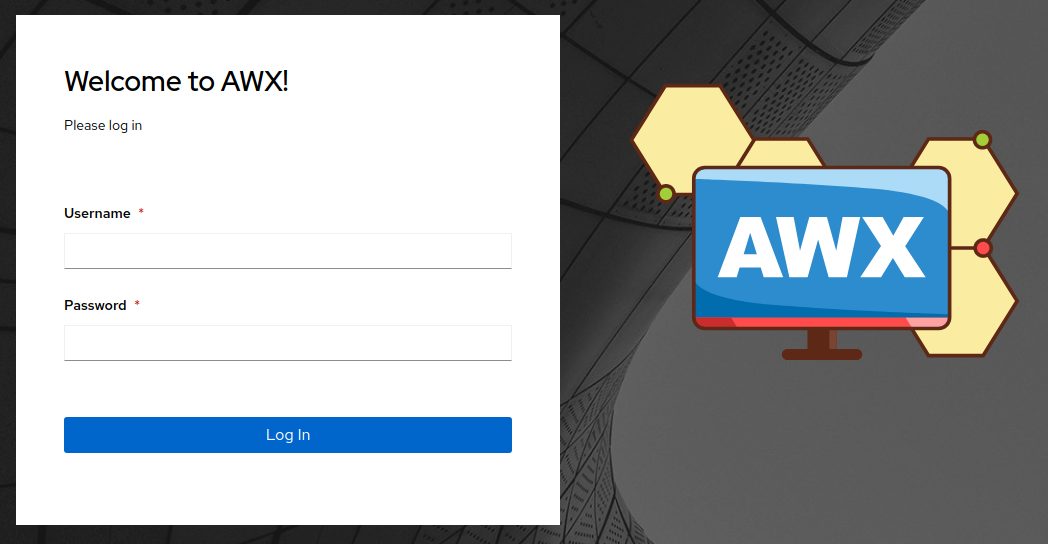

And try it :

Looks good ! The default username is “admin”. To know the password, go back to your shell and retrieve it as follow :

joc@jocbox:~/awx-operator$ kubectl get secret awx-joc-admin-password -o jsonpath="{.data.password}" | base64 --decode
LbcA6yarpcRcnDMeBTJvZnJ8hf7wXXxa
joc@jocbox:~/awx-operator$

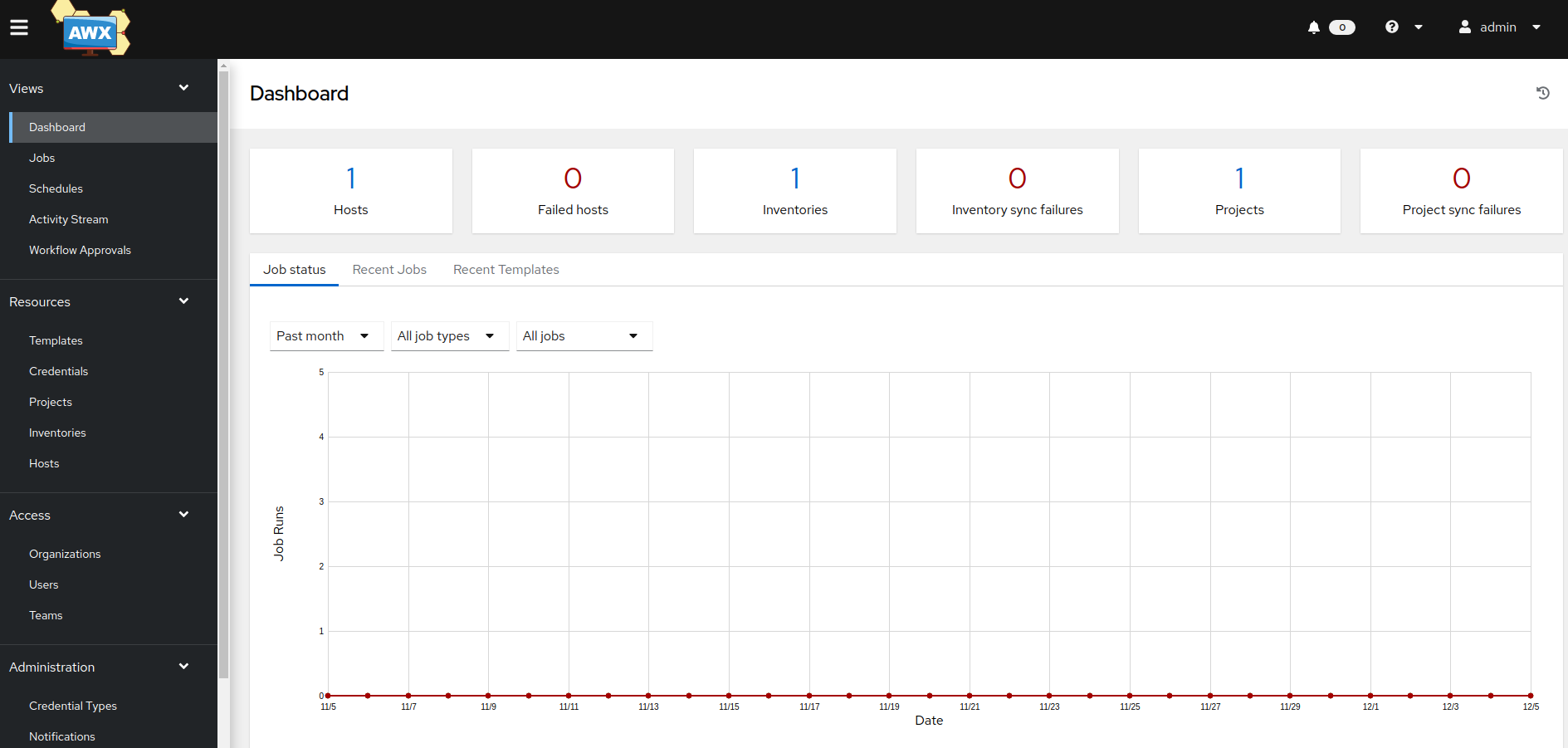

Go back to your browser, log in and be ready to play with your new AWX platform :
