In this blog post, I will show you the steps I went through to run SQL Server inside a Linux Docker container on my Windows 10 laptop.
The aim here is to deploy quickly and easily SQL Server instances in my lab environment.
Since May 2020 Windows ships with WSL 2. Windows System for Linux is a feature that creates a lightweight environment that allows you to run Linux distributions (Debian, Ubuntu, etc.) without having to set up a VM or dual-booting. WSL has been around for a while but with WSL 2 the architecture has been reconfigured to run a Linux kernel, adding full system call compatibility and increasing file system performance. You can now run Docker in your Linux distro on Windows with WSL 2.
In this blog post, I decided to install the Docker Engine on Windows with Docker Desktop but you could also install Docker directly on a WSL2 Linux distro.
We will see the following topics
– WSL 2 installation
– Docker Desktop installation
– Run a SQL Server container
– Connect to the SQL Server instance with SSMS
– Enable the SQL Server Agent
– Create a custom image
– Transfert a database backup file
WSL 2 installation
The requirement to use WSL 2 is to have Windows 10 version 1903 or higher with Build 18362 or higher.

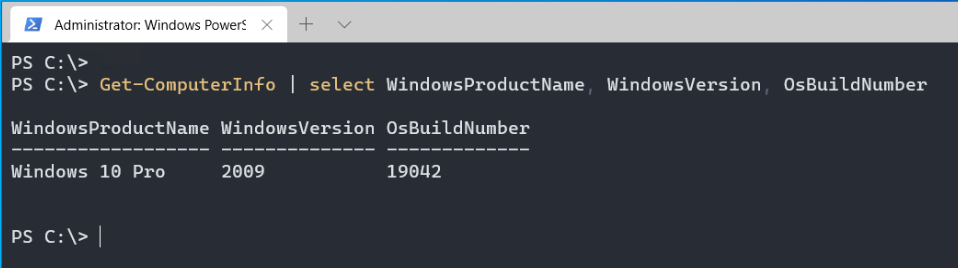

So the first thing is to check the windows version and build number. It can be done with PowerShell with Get-ComputerInfo.

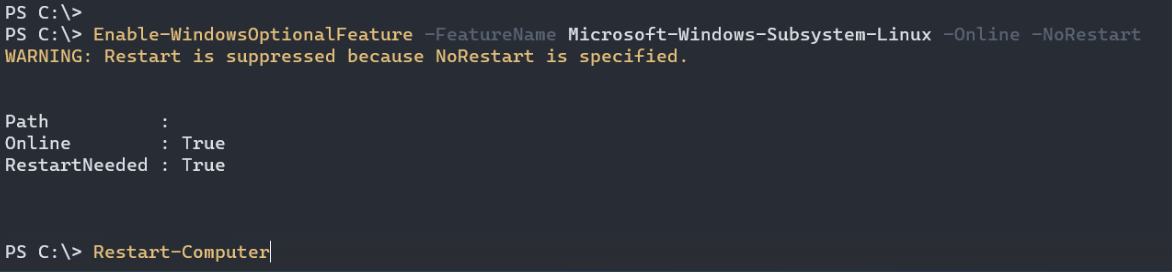

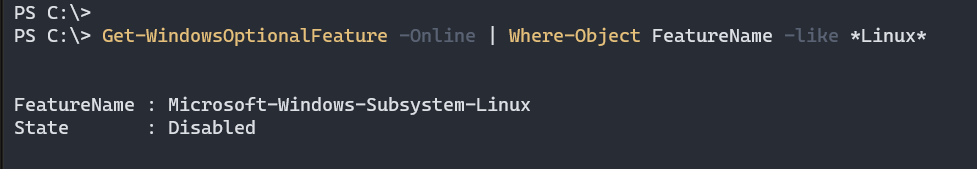

Let’s check if WSL is already enabled:

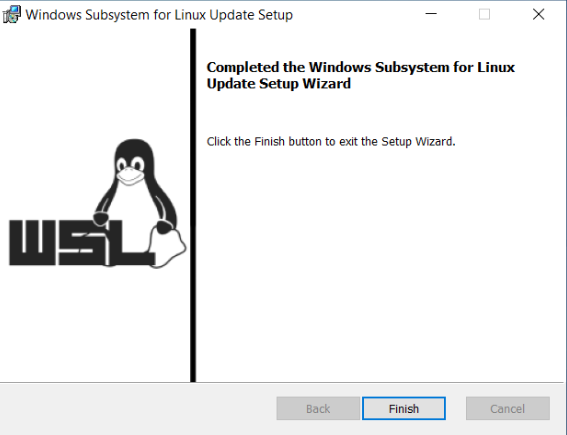

Once enabled WSL 2 needs to be updated.
To do so you need to download and run the latest WSL 2 update package.
Docker Desktop installation

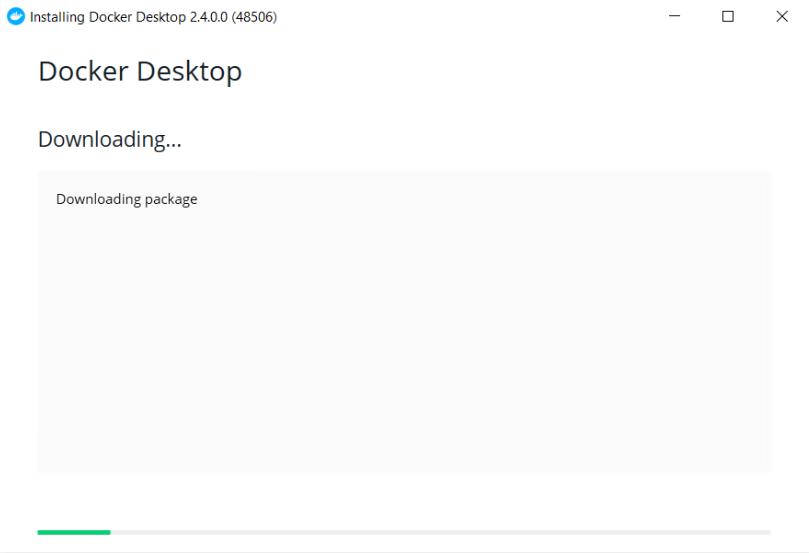

Download the latest Docker Desktop for Windows installer from Docker Hub.

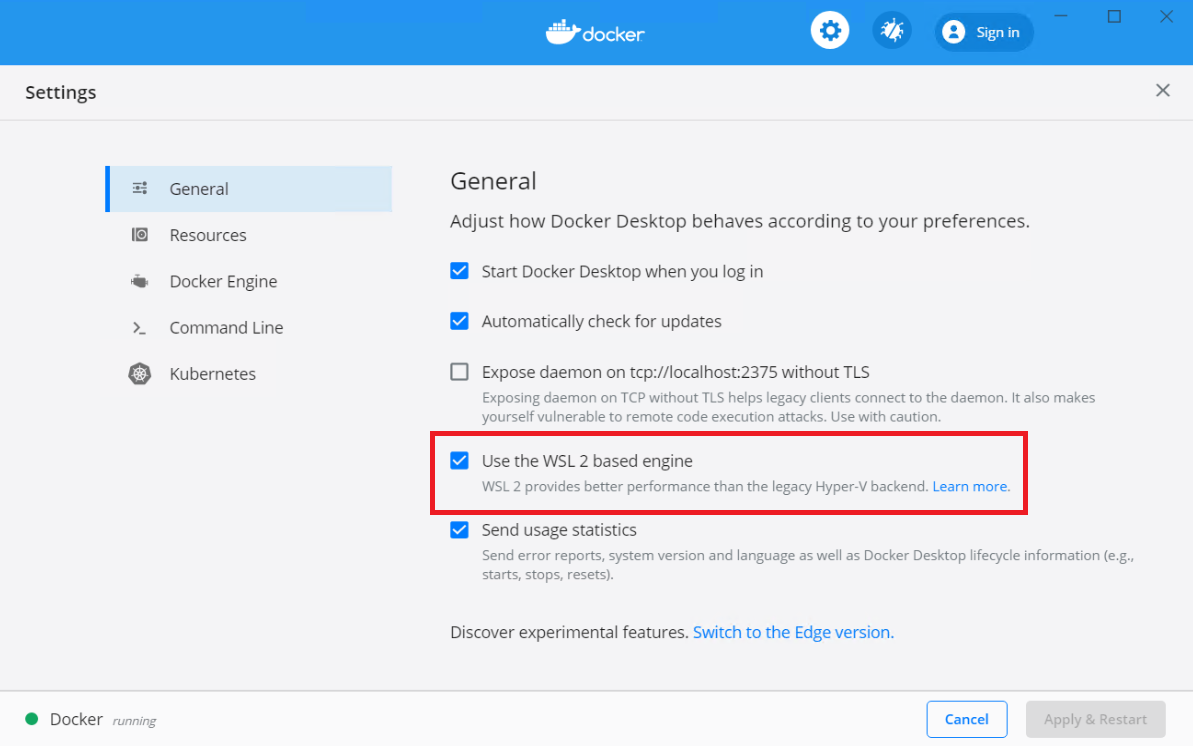

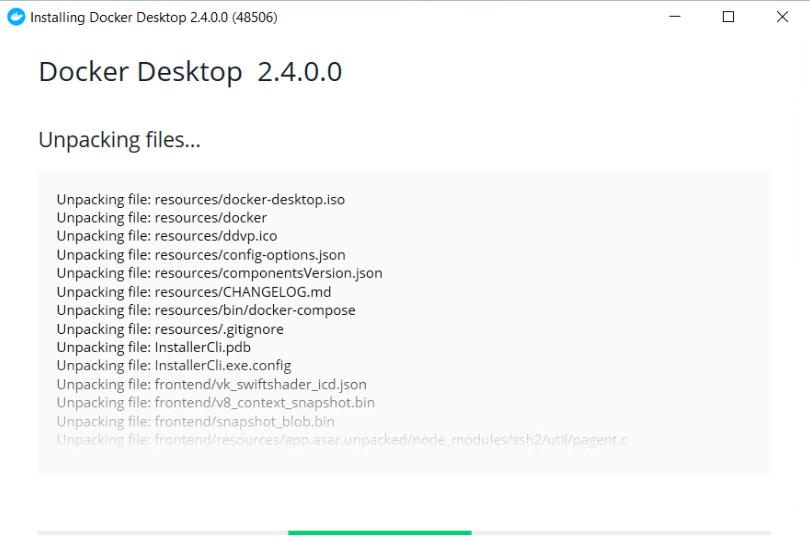

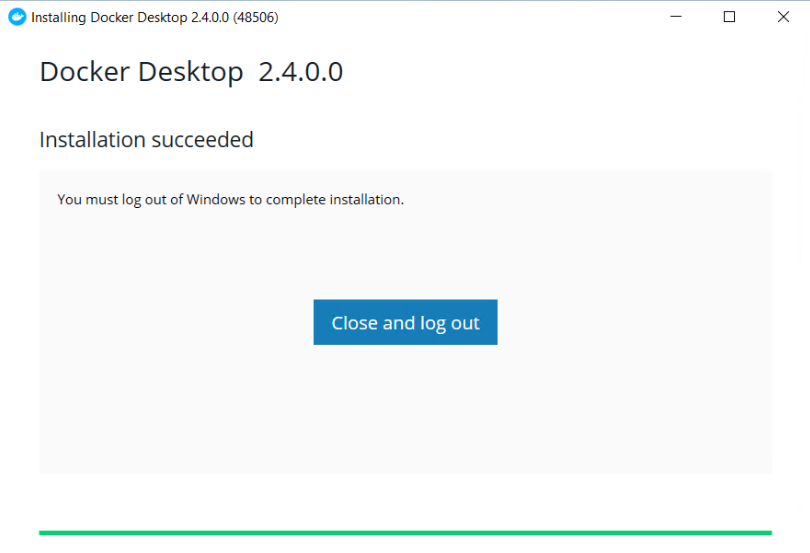

The installation is pretty straightforward.

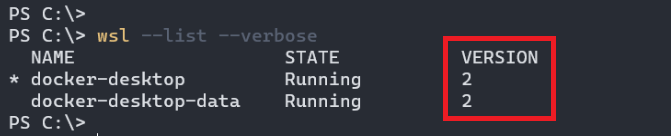

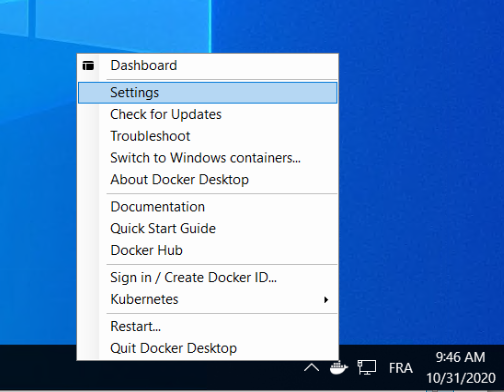

Now that Docker Desktop is installed you can use the following command to list distributions installed on your computer. Docker Desktop comes with 2 distributions and we can verify what version WSL we have.
Run an SQL Server container
We are now all set up.
To start working with a container we first need to choose a container image to run from.

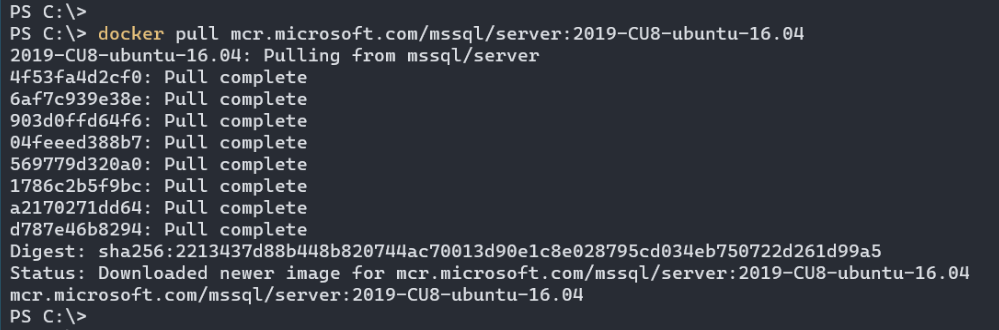

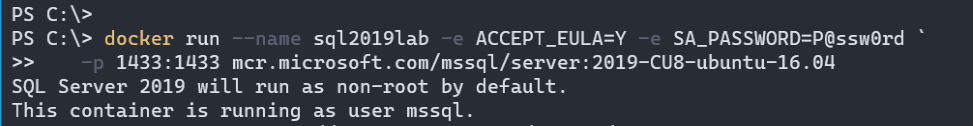

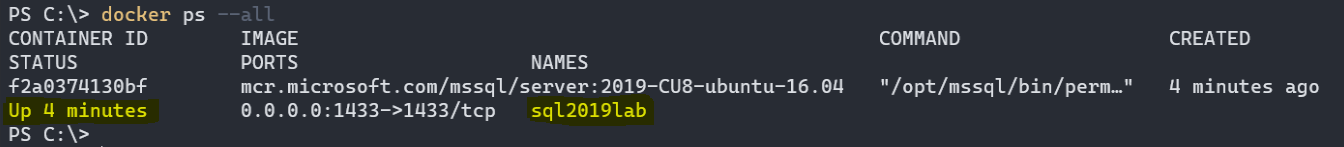

The list of official SQL Server from Microsoft is available on Docker Hub. I will choose the 2019 CU8 on Ubuntu 16.04 one.

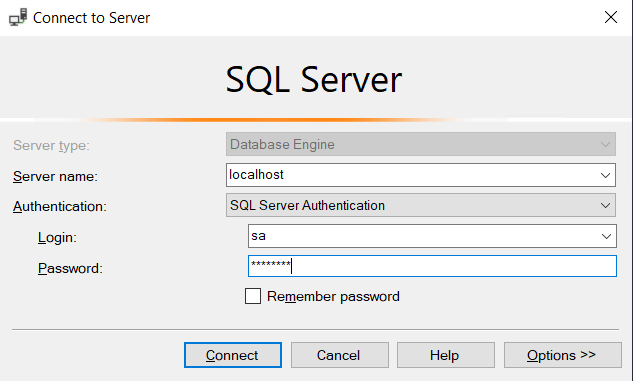

Connect to the instance with SSMS

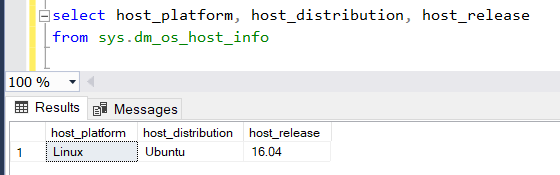

I can confirm the instance is running querying the DMV sys.dm_os_host_info.
Enable the SQL Server Agent

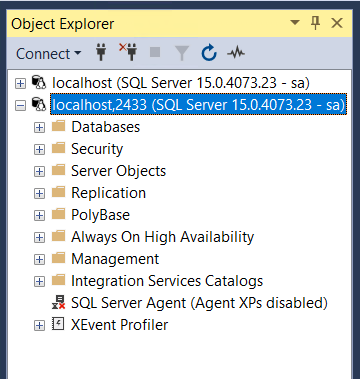

On the screenshot above we can see the SQL Server Agent is disabled by default. It can be enabled in T-SQL from the instance:
exec sp_configure 'show advanced options',1 reconfigure exec sp_configure 'Agent XPs',1 reconfigure

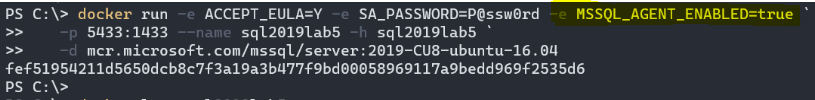

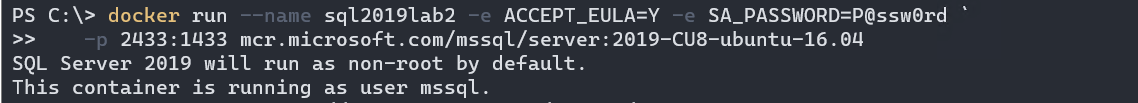

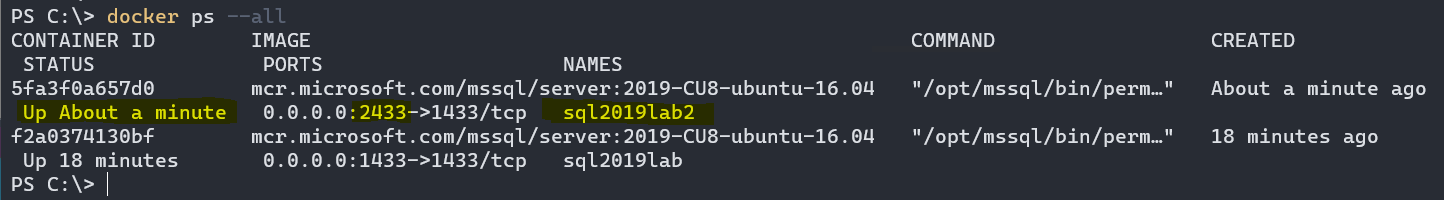

The SQL Server Agent could be enabled at the run with an SQL Server environment variable ; MSSQL_AGENT_ENABLED. Here is an example;
Create a custom image
Now in T-SQL I will create a database “TestDB” with a table and insert rows inside.
create database testDB go use testDB go create table testTable ( id int identity primary key , colA char(4) ) go insert into testTable(colA) values('test') go 2020

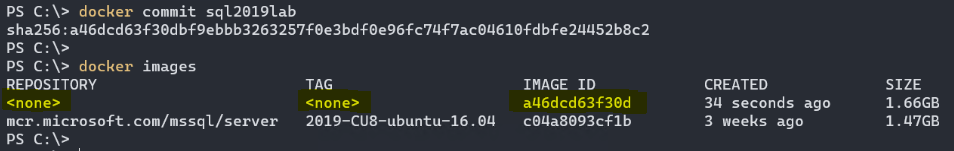

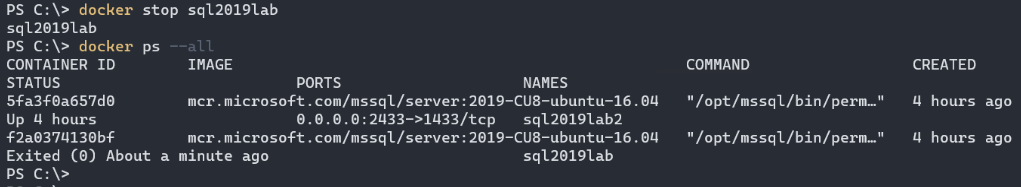

Then I need to run docker commit.

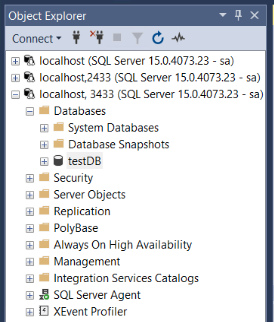

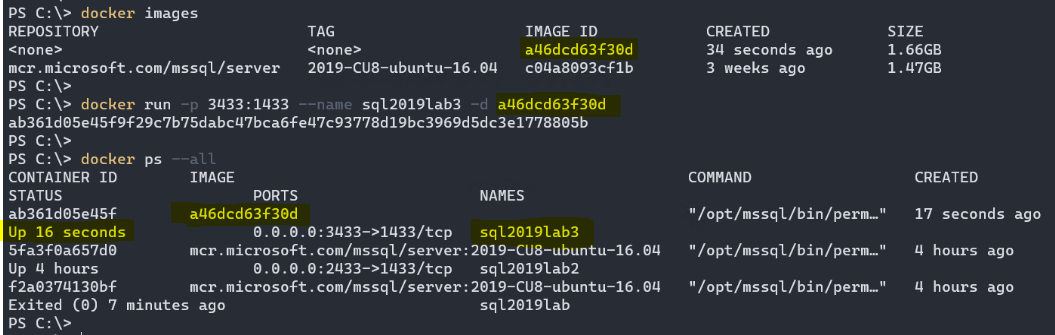

The image is ready. The image has no repository or tag. I could upload my custom image to Docker Hub and run it from anywhere but I’ll keep everything locally for now. I can run a container from my new image.
Transfert a database backup file
In conclusion, we’ve seen how easy it is to set up Docker on Windows and run containers.
It’s not more complicated than installing SQL Server on a VM with Hyper-V or VirtualBox.
Once the image has been downloaded a new SQL Server instance can be deployed in a few seconds.
I hope you enjoyed this short introduction to SQL Server in containers.
