Deploying SQL Server 2019 AGs on K8s with helm charts

This write-up follows my first article about helm chart with SQL Server. This time, I would like to cover the availability groups topic and how to deploy them with helm charts.

In fact, to go through this feature for AGs was motivated to its usage in our Azure DevOps CI pipeline in order to deploy a configurable one on an AKS cluster with SQL Server 2019.

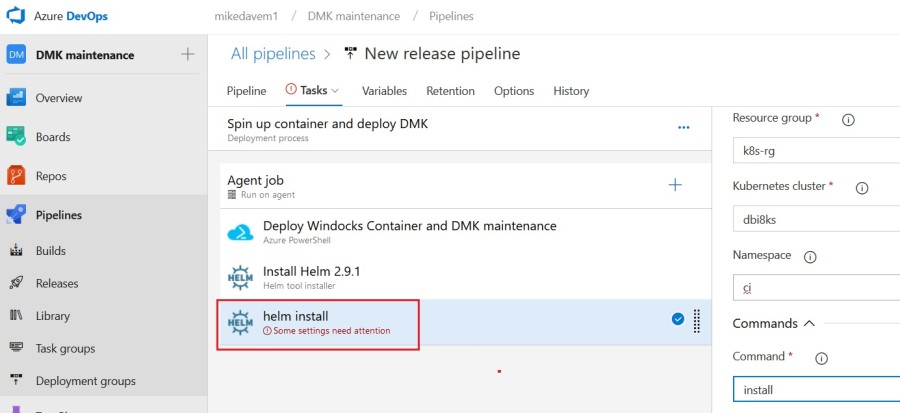

If you look carefully at the release pipeline, Windocks is also another product we are using for our integration testing with SQL Server containers and I will probably explain more on this topic in a future blog post. But this time I would like to share some experiences with the construction of the AG helm chart.

First of all let’s precise I used the content provided by Microsoft on GitHub to deploy availability groups on K8s. This is a new functionality of SQL Server 2019 and we run actually with CTP 2.1 version. Chances are things will likely change over the time and I may bet Microsoft will release their own helm chart in the future. Anyway, for me it was an interesting opportunity to deep dive in helm charts feature.

First step I ran into was the parametrization (one big interest of Helm) of the existing template with input values including AG’s name, image container repository and tag used for deployment and different service settings like service type, service port and target service port.

Here one of my values.yaml file:

# General parameters
agname: ag1
acceptEula: true
# Container parameters
agentsContainerImage:
  repository: mcr.microsoft.com/mssql/ha
  tag: 2019-CTP2.1-ubuntu
  pullPolicy: IfNotPresent
sqlServerContainer:
  repository: mcr.microsoft.com/mssql/server
  tag: 2019-CTP2.1-ubuntu
  pullPolicy: IfNotPresent
# Service parameters
sqlservice:
  type: LoadBalancer
  port: 1433
agservice:
  type: LoadBalancer
  port: 1433

As a reminder, services on K8s are a way to expose pods to the outside world. I also introduced some additional labels for the purpose of querying the system. This is basically the same labels used in the stable template on GitHub.

labels:
    …
    app: {{ template "dbi_mssql_ag.name" . }}
    chart: {{ .Chart.Name }}-{{ .Chart.Version | replace "+" "_" }}
    release: {{ .Release.Name }}
    heritage: {{ .Release.Service }}

Here a sample of my ag-sqlserver-deployment.yaml file with parametrization stuff:

apiVersion: mssql.microsoft.com/v1
kind: SqlServer
metadata:
  labels:
    name: mssql1
    type: sqlservr
    app: {{ template "dbi_mssql_ag.name" . }}
    chart: {{ .Chart.Name }}-{{ .Chart.Version | replace "+" "_" }}
    release: {{ .Release.Name }}
    heritage: {{ .Release.Service }}
  name: mssql1
  namespace: {{ .Release.Namespace }}
spec:
  acceptEula: true
  agentsContainerImage: {{ .Values.agentsContainerImage.repository }}:{{ .Values.agentsContainerImage.tag }}
  availabilityGroups: [{{ .Values.agname }}]
  instanceRootVolumeClaimTemplate:
    accessModes: [ReadWriteOnce]
    resources:
      requests: {storage: 5Gi}
    storageClass: default
  saPassword:
    secretKeyRef: {key: sapassword, name: sql-secrets}
  masterKeyPassword:
    secretKeyRef: {key: masterkeypassword, name: sql-secrets}
  sqlServerContainer: {image: '{{ .Values.sqlServerContainer.repository }}:{{ .Values.sqlServerContainer.tag }}'}

In addition, for a sake of clarity, I also took the opportunity to break the YAML files provided by Microsoft into different pieces including AG operator, AG RBAC configuration (security), AG instances and resources and AG services files. But you may wonder (like me) how to control the ordering of object’s creation? Well, it is worth noting that Helm collects all of the resources in a given Chart and it’s dependencies, groups them by resource type, and then installs them in a pre-defined order.

Let’ say I also removed the existing namespace’s creation from the existing YAML file because currently helm charts are not able to create one if it doesn’t exist. From a security perspective my concern was to keep the release deployment under control through helm charts so I preferred to precise the namespace directly in the –namespace parameter as well as creating the sql-secrets object which contains both sa and master key passwords manually according to the Microsoft documentation. In this way, you may segregate the permissions tiller has on a specific namespace and in my case, tiller has access to the ci namespace only.

Here comes likely the most interesting part. During the first deployment attempt, I had to face was the dependency that exists between the AG operator, SQL Server and AG resources as stated here:

The operator implements and registers the custom resource definition for SQL Server and the Availability Group resources.

The custom resource definition (CRD) is one of the first components with the deployment of the AG operator. You may retrieve an API service v1.mssql.microsoft.com as show below:

$ kubectl describe apiservice v1.mssql.microsoft.com
Name:         v1.mssql.microsoft.com
Namespace:
Labels:       kube-aggregator.kubernetes.io/automanaged=true
Annotations:  <none>
API Version:  apiregistration.k8s.io/v1
Kind:         APIService
Metadata:
  Creation Timestamp:  2019-01-17T01:45:19Z
  Resource Version:    283588
  Self Link:           /apis/apiregistration.k8s.io/v1/apiservices/v1.mssql.microsoft.com
  UID:                 8b90159d-19f9-11e9-96ba-ee2da997daf5
Spec:
  Group:                   mssql.microsoft.com
  Group Priority Minimum:  1000
  Service:                 <nil>
  Version:                 v1
  Version Priority:        100
Status:
  Conditions:
    Last Transition Time:  2019-01-17T01:45:19Z
    Message:               Local APIServices are always available
    Reason:                Local
    Status:                True
    Type:                  Available
Events:                    <none>

Then the API is referenced in the YAML file that contains the definition of SQL Server resource objects through the following elements:

apiVersion: mssql.microsoft.com/v1
kind: SqlServer

As you probably guessed, if this API is missing on your K8s cluster at the moment of installing the AG resources you’ll probably face the following error message:

Error: [unable to recognize “”: no matches for kind “SqlServer” in version “mssql.microsoft.com/v1”, unable to recognize “”: no matches for kind “SqlServer” in version “mssql.microsoft.com/v1”, unable to recognize “”: no matches for kind “SqlServer” in version “mssql.microsoft.com/v1”]

At this stage, referring to the Helm documentation, I decided to split my initial release deployment into 2 separate helm charts. Between the 2 suggested methods in the documentation I much prefer this one because updating / removing releases is little bit easier but at the cost of introducing an additional chart in the game. With the CRD hook method, the CRD is not attached to a specific chart deployment, so if we need to change something in the CRD, it doesn’t get updated in the cluster unless we tear down the chart and install it again. This also means that we can’t add a CRD to a chart that has already been deployed. Finally, I took a look at the charts dependency feature but it doesn’t fix my issue at all because chart validation seems to come before the completion of the custom API. This is at least what I noticed with the current version of my helm version (v2.12.1). Probably one area to investigate for Microsoft …

So let’s continue …  Here the structure of my two helm charts (respectively for my AG resources and my AG operator).

$ tree /f

───dbi_mssql_ag
│   │   .helmignore
│   │   Chart.yaml
│   │   values.yaml
│   │
│   ├───charts
│   └───templates
│       │   ag-services.yaml
│       │   ag-sqlserver-deployment.yaml
│       │   NOTES.txt
│       │   _helpers.tpl
│       │
│       └───tests
└───dbi_mssql_operator
    │   .helmignore
    │   Chart.yaml
    │   values.yaml
    │
    ├───charts
    └───templates
        │   ag-operator-deployment.yaml
        │   ag-security.yaml
        │   NOTES.txt
        │   _helpers.tpl
        │
        └───tests

The deployment consists in deploying the two charts in the correct order:

$ helm install --name ag-2019-o --namespace ci .\dbi_mssql_operator\
…
$ helm install --name ag-2019 --namespace ci .\dbi_mssql_ag\
…
$ helm ls
NAME            REVISION        UPDATED                         STATUS          CHART           APP VERSION     NAMESPACE
ag-2019         1               Wed Jan 16 23:48:33 2019        DEPLOYED        dbi-mssql-ag-1  2019.0.0        ci
ag-2019-o       1               Wed Jan 16 23:28:17 2019        DEPLOYED        dbi-mssql-ag-1  2019.0.0        ci
…
$ kubectl get all -n ci
NAME                                 READY     STATUS      RESTARTS   AGE
pod/mssql-initialize-mssql1-hb9xs    0/1       Completed   0          2m
pod/mssql-initialize-mssql2-47n99    0/1       Completed   0          2m
pod/mssql-initialize-mssql3-67lzn    0/1       Completed   0          2m
pod/mssql-operator-7bc948fdc-45qw5   1/1       Running     0          22m
pod/mssql1-0                         2/2       Running     0          2m
pod/mssql2-0                         2/2       Running     0          2m
pod/mssql3-0                         2/2       Running     0          2m

NAME                  TYPE           CLUSTER-IP     EXTERNAL-IP     PORT(S)             AGE
service/ag1           ClusterIP      None           <none>          1433/TCP,5022/TCP   2m
service/ag1-primary   LoadBalancer   10.0.62.75     xx.xx.xxx.xx   1433:32377/TCP      2m
service/mssql1        LoadBalancer   10.0.45.155    xx.xx.xxx.xxx   1433:31756/TCP      2m
service/mssql2        LoadBalancer   10.0.104.145   xx.xx.xxx.xxx       1433:31285/TCP      2m
service/mssql3        LoadBalancer   10.0.51.142    xx.xx.xxx.xxx       1433:31002/TCP      2m

NAME                             DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/mssql-operator   1         1         1            1           22m

NAME                                       DESIRED   CURRENT   READY     AGE
replicaset.apps/mssql-operator-7bc948fdc   1         1         1         22m

NAME                      DESIRED   CURRENT   AGE
statefulset.apps/mssql1   1         1         2m
statefulset.apps/mssql2   1         1         2m
statefulset.apps/mssql3   1         1         2m

NAME                                DESIRED   SUCCESSFUL   AGE
job.batch/mssql-initialize-mssql1   1         1            2m
job.batch/mssql-initialize-mssql2   1         1            2m
job.batch/mssql-initialize-mssql3   1         1            2m

After that, my AG is deployed and ready!

Let me know if you want to try it and feel free to comment!. Apologize I don’t use a GitHub repository so far but things may be changing this year 🙂

Bear in mind  SQL Server 2019 is still in CTP version at the moment of this write-up. Things may change more or less until the first GA …

Happy AG deployment on K8s!

By David Barbarin
