Configure AFD with Grid Infrastructure software (SIHA & CRS) from very beginning.

Introduction :

Oracle ASM Filter Driver (Oracle ASMFD) simplifies the configuration and management of disk devices by eliminating the need to rebind disk devices used with Oracle ASM each time the system is restarted.
Oracle ASM Filter Driver (Oracle ASMFD) is a kernel module that resides in the I/O path of the Oracle ASM disks. Oracle ASM uses the filter driver to validate write I/O requests to Oracle ASM disks.

In this blog I will explain how to setup a Grid Infrastructure software within AFD on an architecture SIHA or CRS

Case1. You want to configure AFD from very beginning (no UDEV, no ASMLib) with SIHA, Single Instance High Availability installation (former Oracle Restart)

Issue :

If we want to use AFD driver from very beginning, we should use Oracle AFD to prepare some disks for the ASM instance,
The issue is coming from the fact that AFD will be available just after the installation (can be configured before the installation)!

Solution :

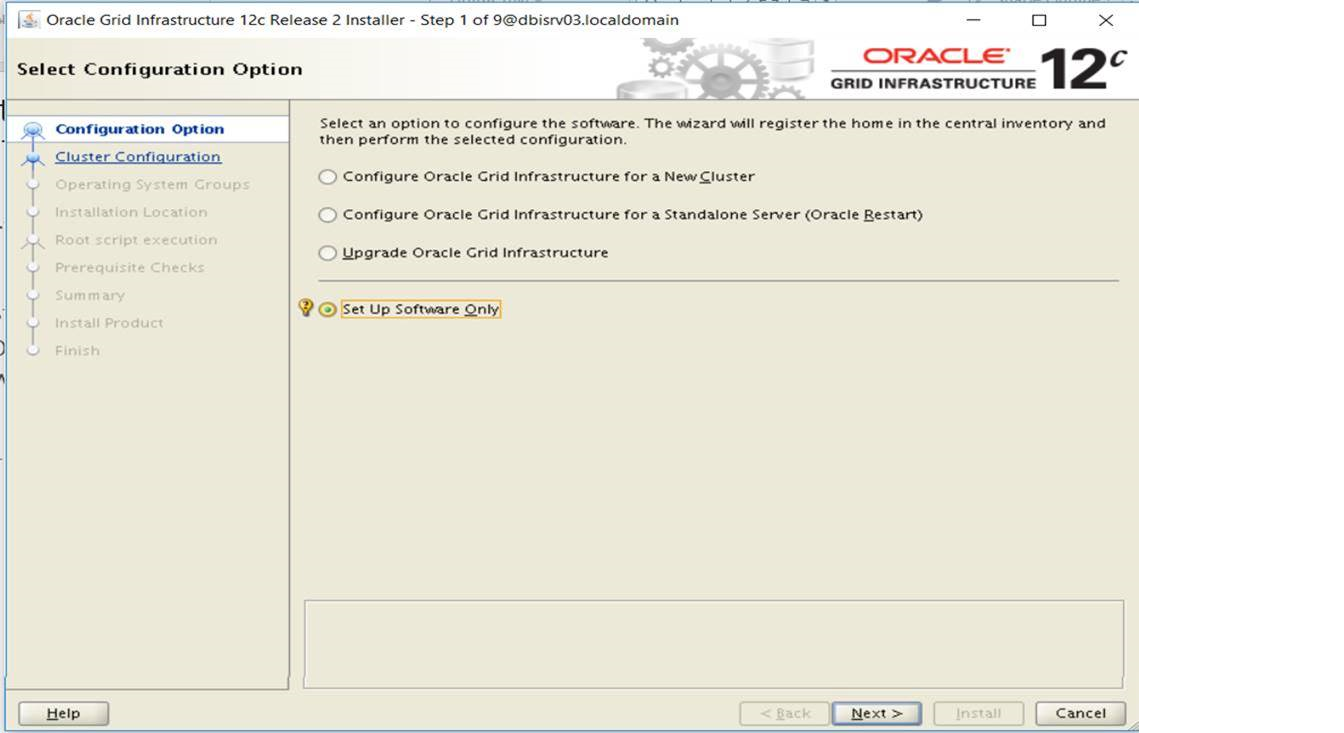

Step1. Install GI stack in software only mode

Step2. Run root.sh when is prompted, without any other action(do not execute generated script rootUpgrade.sh)

Step3. Run roothas.pl to setup your HAS stack

[root] /u01/app/grid/product/12.2.0/grid/perl/bin/perl -I /u01/app/grid/product/12.2.0/grid/perl/lib -I /u01/app/grid/product/12.2.0/grid/crs/install /u01/app/grid/product/12.2.0/grid/crs/install/roothas.pl

Step4. As root user proceed to configure AFD

 /u01/app/grid/product/12.2.0/grid/bin/crsctl stop has -f
/u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_configure
/u01/app/grid/product/12.2.0/grid/bin/crsctl start has

Step5.  Setup AFD string to discover new devices , as grid user

 /u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_dsset '/dev/sd*'

Step6. Label new disk as root

 /u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_label DISK1 /dev/sdb1

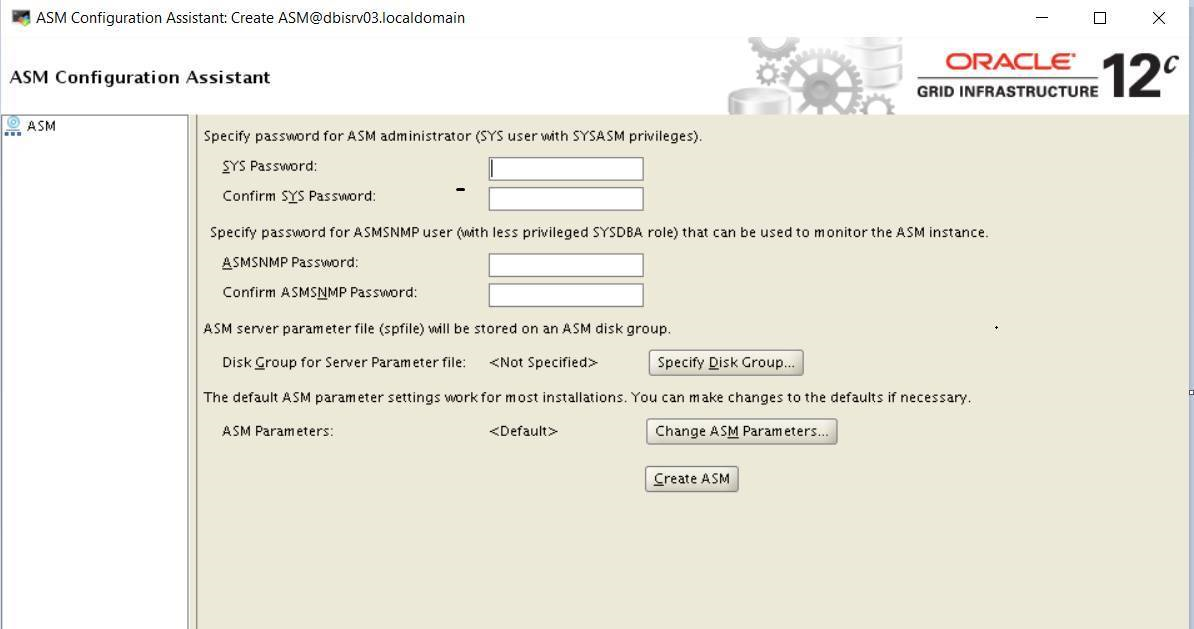

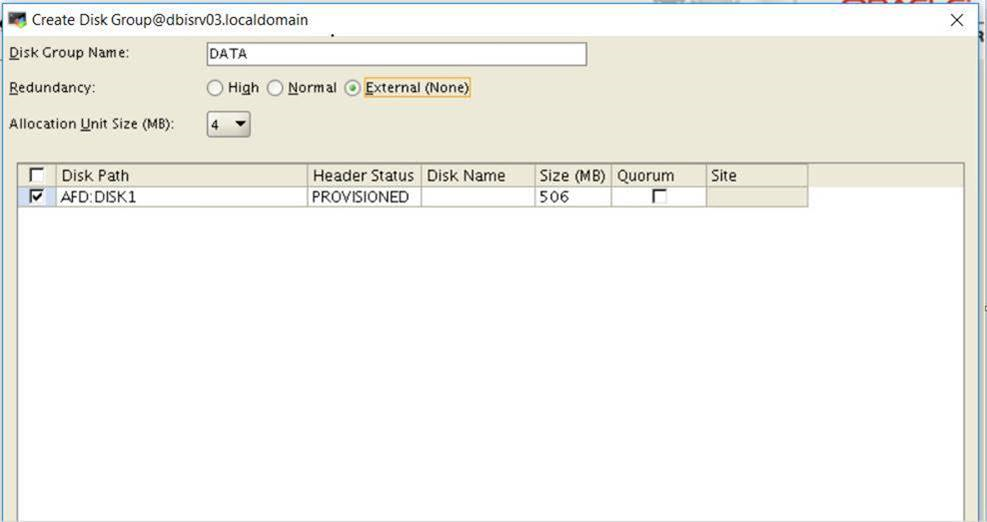

Step7. As grid user, launch ASMCA , to create your ASM instance, based on the diskgroup created on the new labeled disk , DISK1

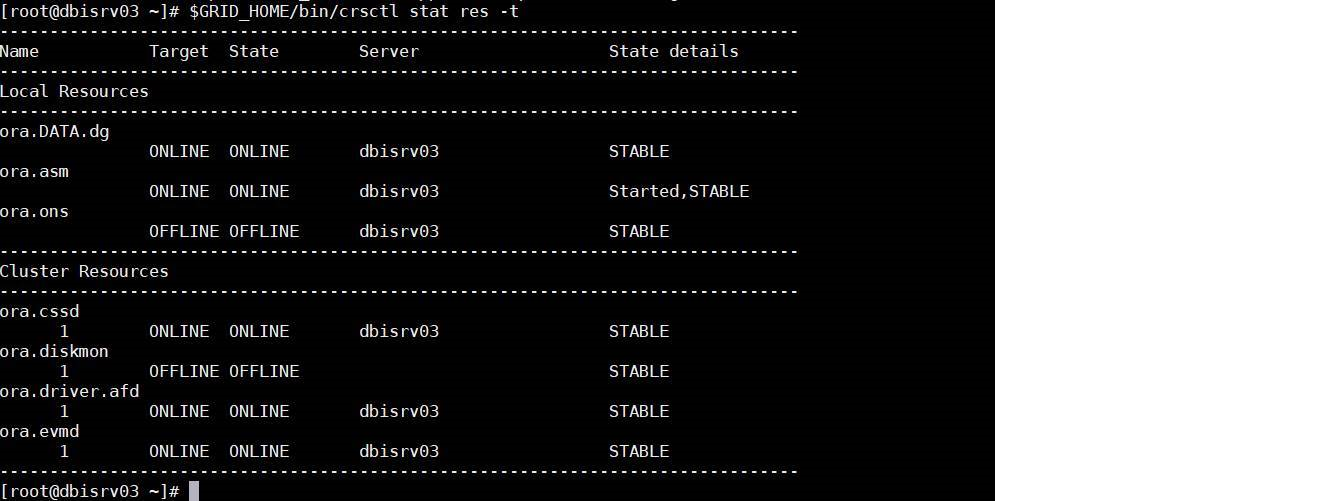

Step8. Display AFD driver  within HAS stack.

Case2. You want to configure AFD from very beginning (no UDEV, no ASMLib) with CRS : Cluster Ready Services

Issue :

By installing on software-only mode, you will just copy and relink the binaries.
No wrapper scripts are created as (crsctl or clsecho).
The issue consists that AFD needs wrapper scripts and not the binaries (crsctl.bin).

Solution :

Step1.Do it on all nodes.

Install Grid Infrastructure on the all nodes of the future cluster in the mode “Software-only Installation”.

Step2. Do it on all nodes.

After the installation the wrapper scripts are not present. You can copy from any other installation (SIHA too) or use a cloned home.

After getting the two scripts , modify the variables inside them to be aligned with your current system used for installation:

ORA_CRS_HOME=/u01/app/grid/product/12.2.0/grid  --should be changed
MY_HOST=dbi1 –should be changed
ORACLE_USER=grid
ORACLE_HOME=$ORA_CRS_HOME
ORACLE_BASE=/u01/app/oracle
CRF_HOME=/u01/app/grid/product/12.2.0/grid –should be changed

Step3. Do it on all nodes

Configure AFD :

[root@dbi1 grid]# /u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_configure
AFD-627: AFD distribution files found.
AFD-634: Removing previous AFD installation.
AFD-635: Previous AFD components successfully removed.
AFD-636: Installing requested AFD software.
AFD-637: Loading installed AFD drivers.
AFD-9321: Creating udev for AFD.
AFD-9323: Creating module dependencies - this may take some time.
AFD-9154: Loading 'oracleafd.ko' driver.
AFD-649: Verifying AFD devices.
AFD-9156: Detecting control device '/dev/oracleafd/admin'.
AFD-638: AFD installation correctness verified.
Modifying resource dependencies - this may take some time.

Step4. Do it only on the first node.

Scan & label the new disks using AFD.

/u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_label DISK1 /dev/sdb1
/u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_label DISK1 /dev/sdc1
/u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_label DISK1 /dev/sdd1
[root@dbi1 grid]# /u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_scan
[root@dbi1 grid]# /u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_lsdsk
--------------------------------------------------------------------------------

Label                     Filtering   Path

================================================================================

DISK1                       ENABLED   /dev/sdb1

DISK2                       ENABLED   /dev/sdc1

DISK3                       ENABLED   /dev/sdd1

Step5. Do it on the other nodes.

Scan and display the disks on the other nodes of the future cluster. No need to label them again.

[root@dbi2 grid]# /u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_scan
[root@dbi2 grid]# /u01/app/grid/product/12.2.0/grid/bin/asmcmd afd_lsdsk
--------------------------------------------------------------------------------
Label                     Filtering   Path
================================================================================
DISK1                       ENABLED   /dev/sdb1
DISK2                       ENABLED   /dev/sdc1
DISK3                       ENABLED   /dev/sdd1

Step6. Do it on 1st node

Run the script config.sh as oracle/grid user

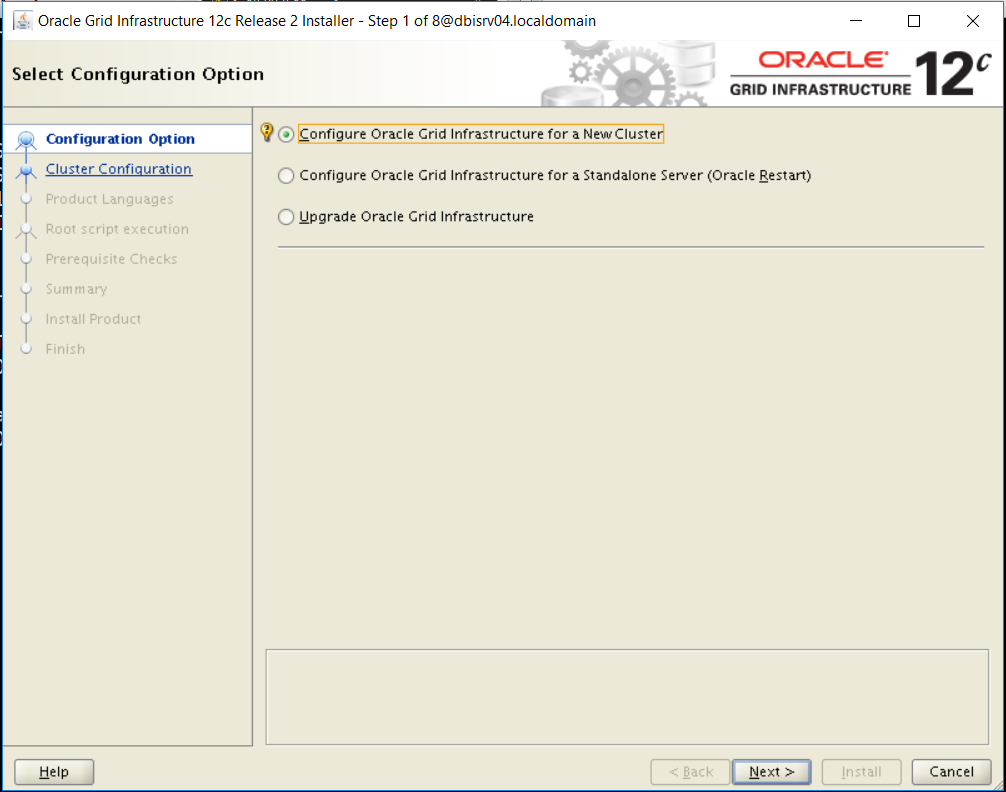

/u01/app/grid/product/12.2.0/grid/crs/config/config.sh

Step7. Do it on 1st node

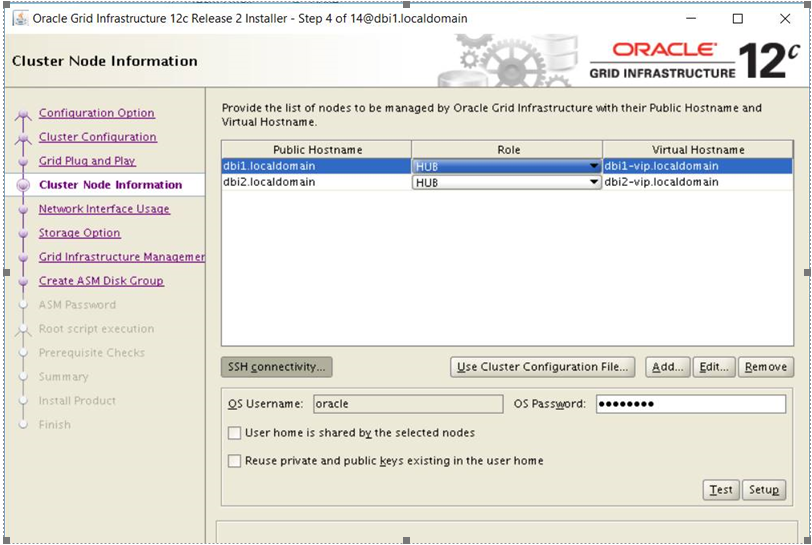

Setup the connectivity between all the future nodes of the cluster and follow the wizard.

Step8. Do it on 1st node

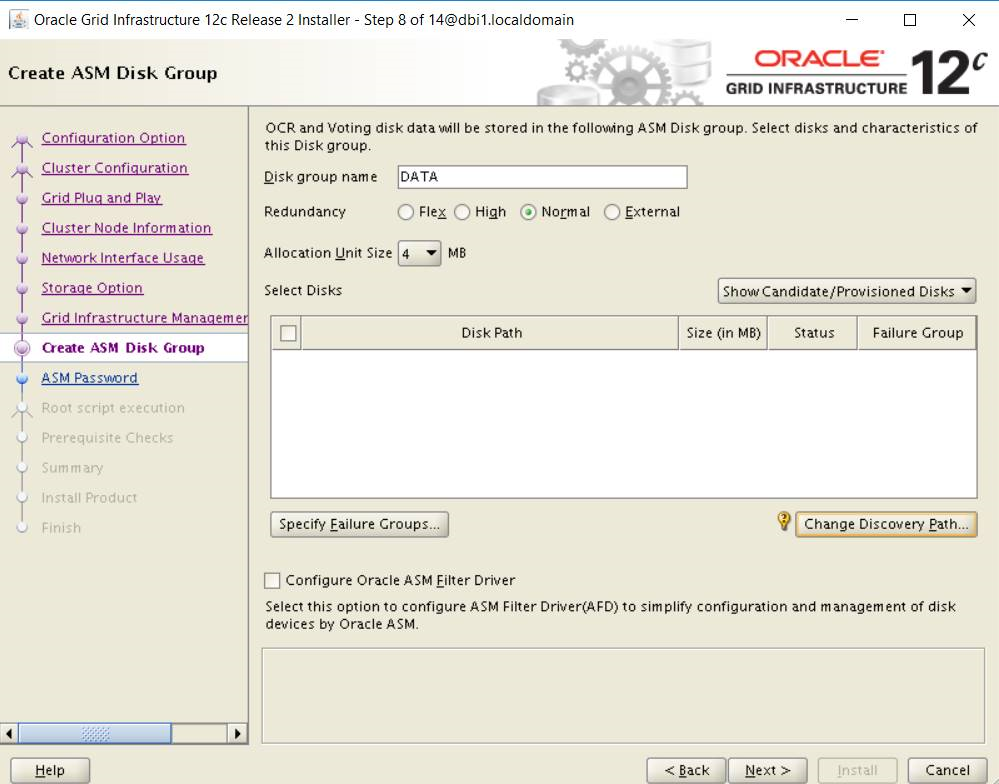

You will be asked to create a ASM diskgroup.

Normally without doing previous steps , will not be possible , as no udev no ASMLib no AFD configured. So no labeled disks for that step.

But…….

Step9. Do it on 1st node

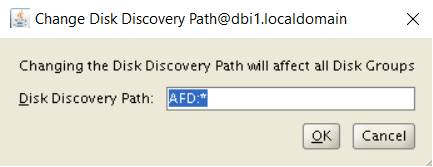

Change discovery path to ‘AFD:*’and should retrieve the disks labeled on the previous step.

Step10. Do it on 1st node

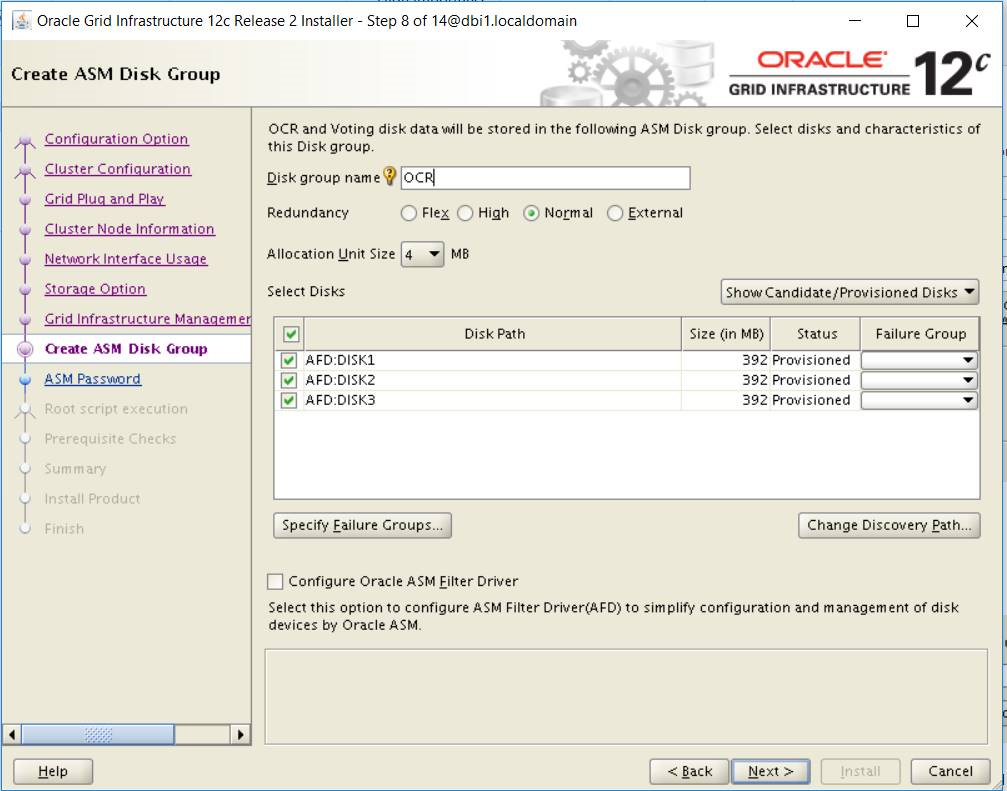

Provide AFD labeled disks to create the ASM disk group for the OCR files.Uncheck “Configure Oracle ASM Filter Driver”

Step11. Do it on 1st node

Finalize the configuration as per documentation.

Additionally, another way (easier ) to install/configure ASM Filter Driver you can find here :
https://www.dbi-services.com/blog/oracle-18c-cluster-with-oracle-asm-filter-driver/

Summary : Using the scenarios described above , we can configure Grid Infrastructure stack within AFD on  a SIHA or CRS architecture.
