One new feature in preview is the “Schema Design compare” in this last MSSQL extension for Visual Studio Code:

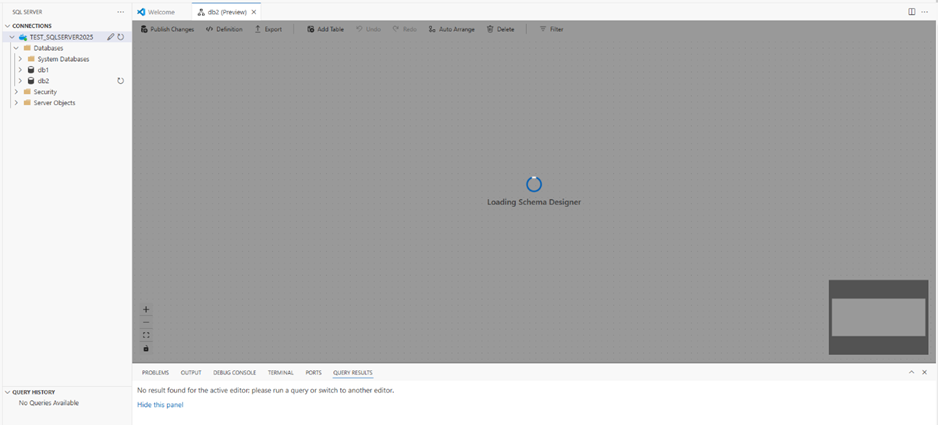

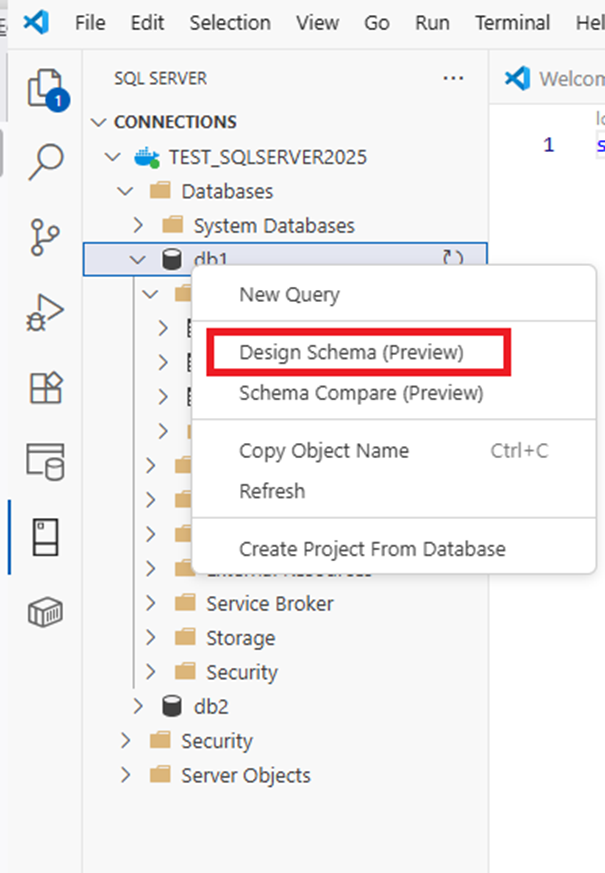

Let’s start and see on a database (db2 in my example):

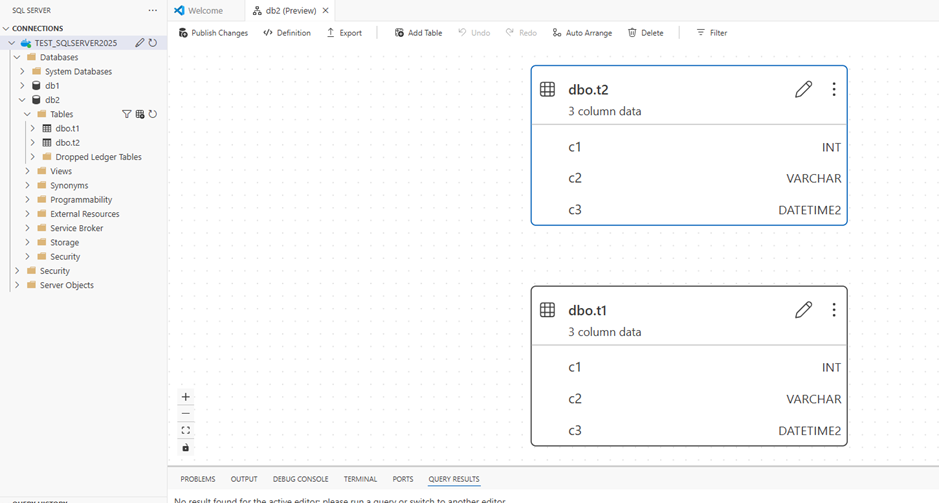

Et voila, I have my 2 tables created during the test on Schema Compare blog here

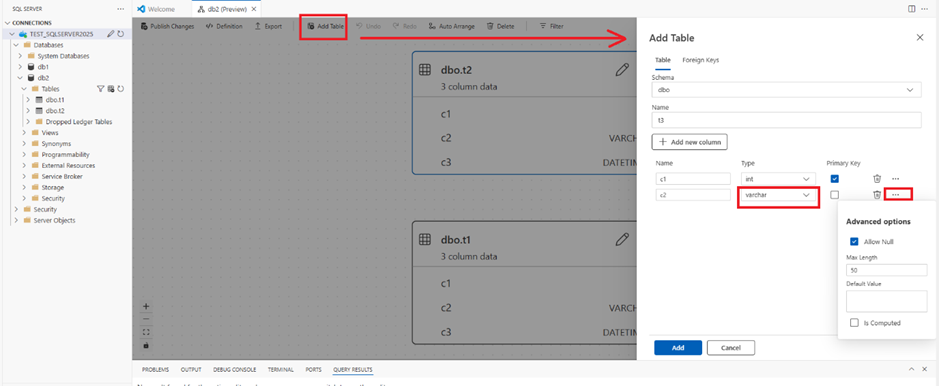

Now, I create a new table t3 with some columns:

Very easy to create a table without being a SQL Expert.

As you can see, you have easily access to the option and add some specific input like the size or a default value.

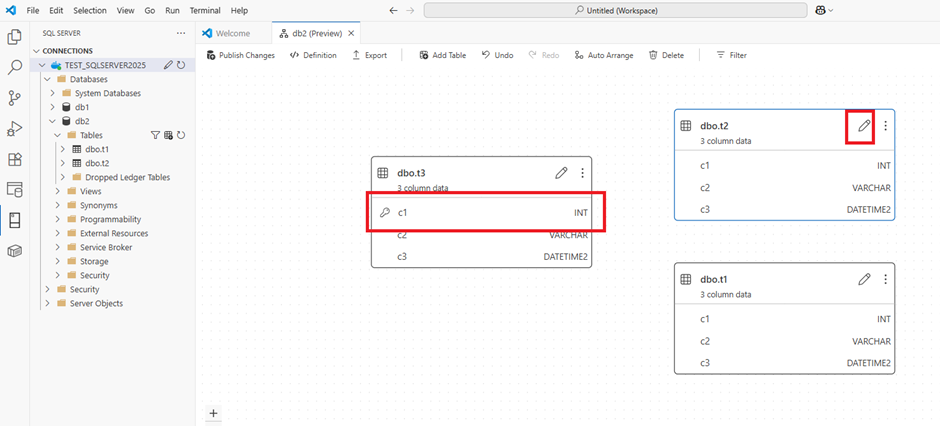

The table t3 is created with a primary key on column c1.

Now, I change my table t2 and want to put c1 as primary key.

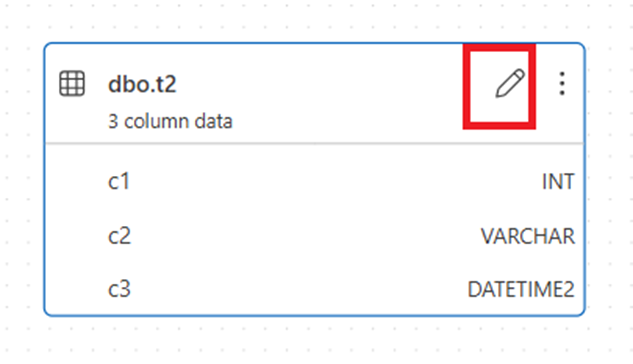

To edit the table t2, just click on the pen:

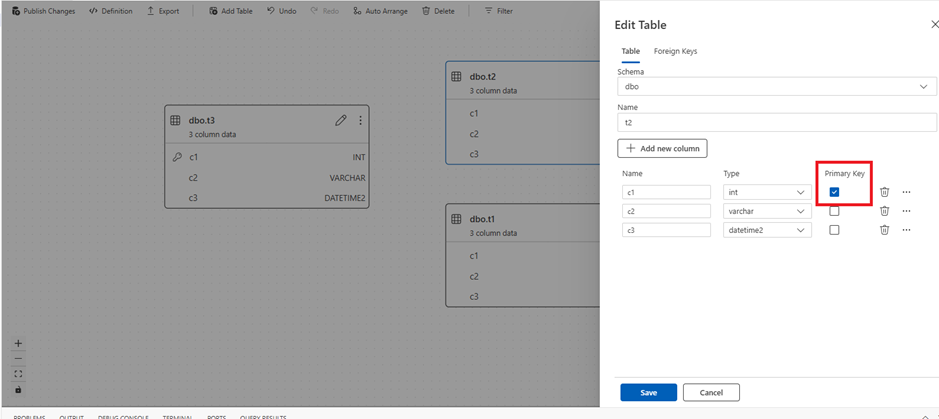

In the edit table, I just check the column c1 as primary key:

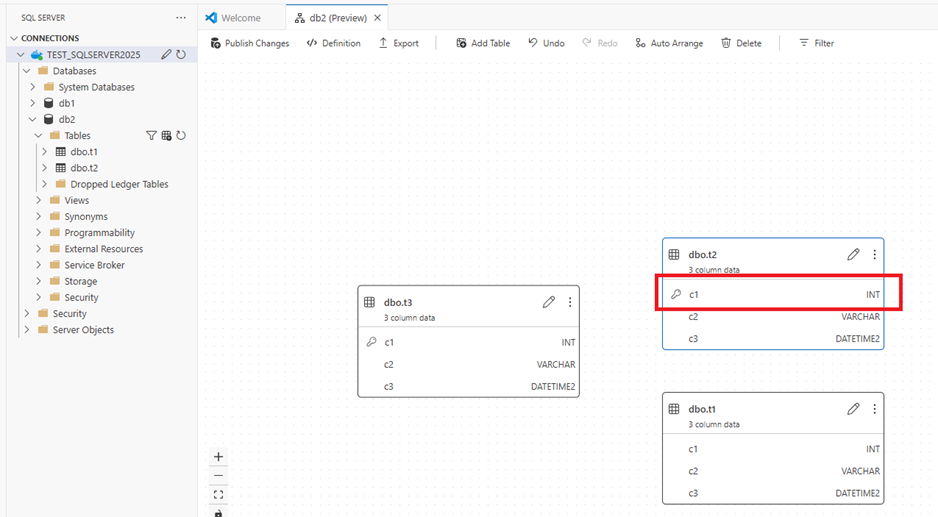

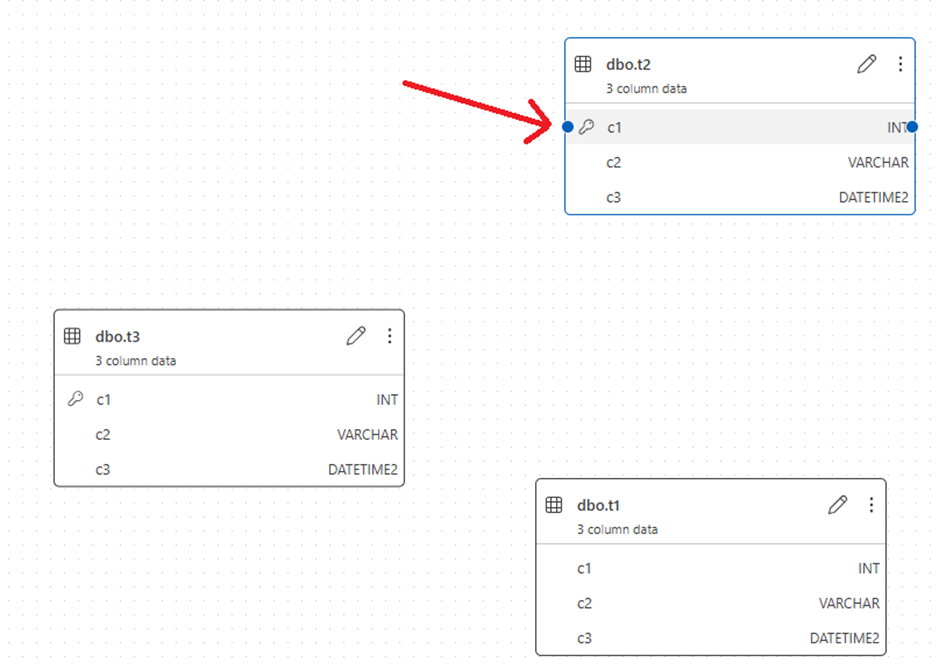

And I have my primary key on table t2:

Now, I want do link between my 3 tables (this is named/known as a Foreign Key…)

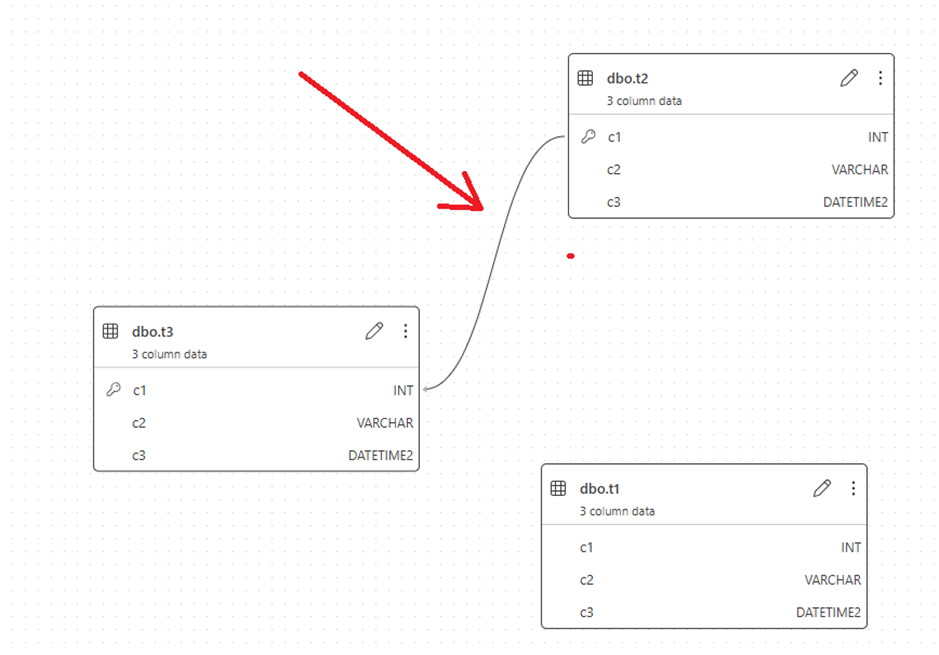

First between t2 and t3, I go the side of the table t2 and a blue point appears. Take it and go to the table t3

Let’s try between the table t2 and the table t1

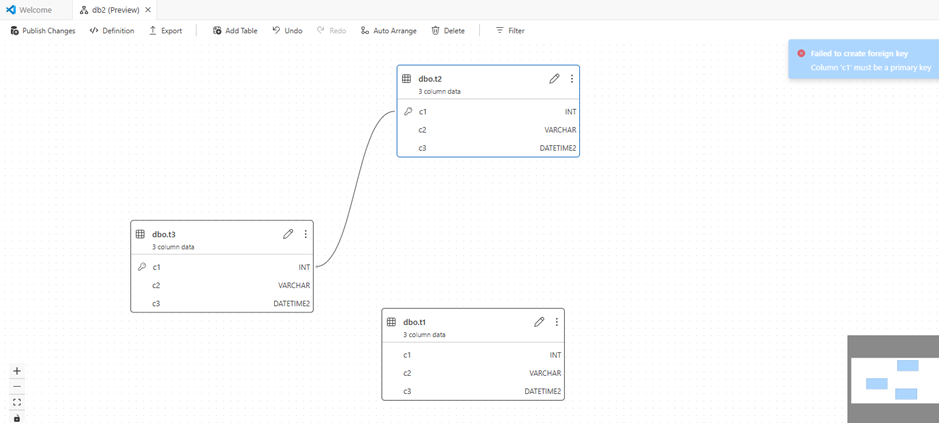

Aie! Error message:

It’s very good to have this control and information.

This will help a lot of developers…

I will not continue more with the design.
It’s already and really a good tool to design our schema.

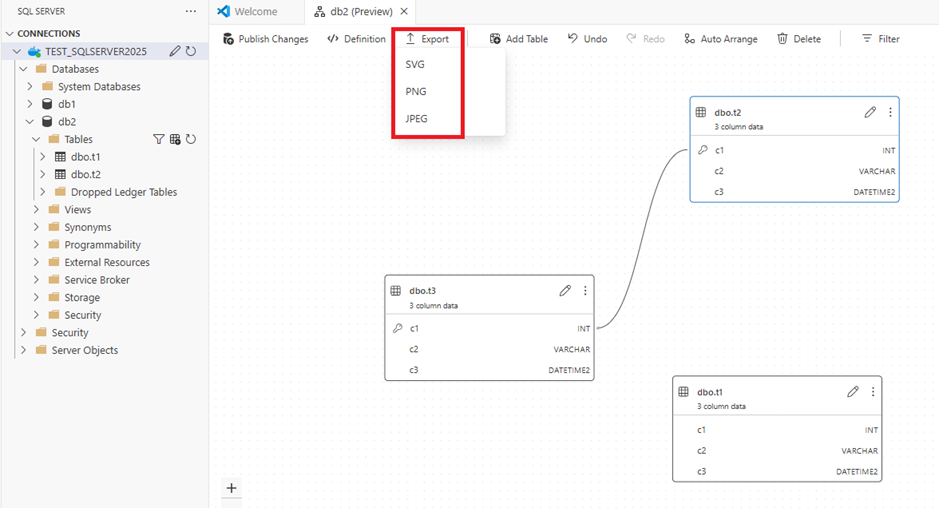

One good point is the export button to have the schema design as a picture with 3 formats possibilities svg ,png or jpeg.

No excuse to not do a documentation! 😉

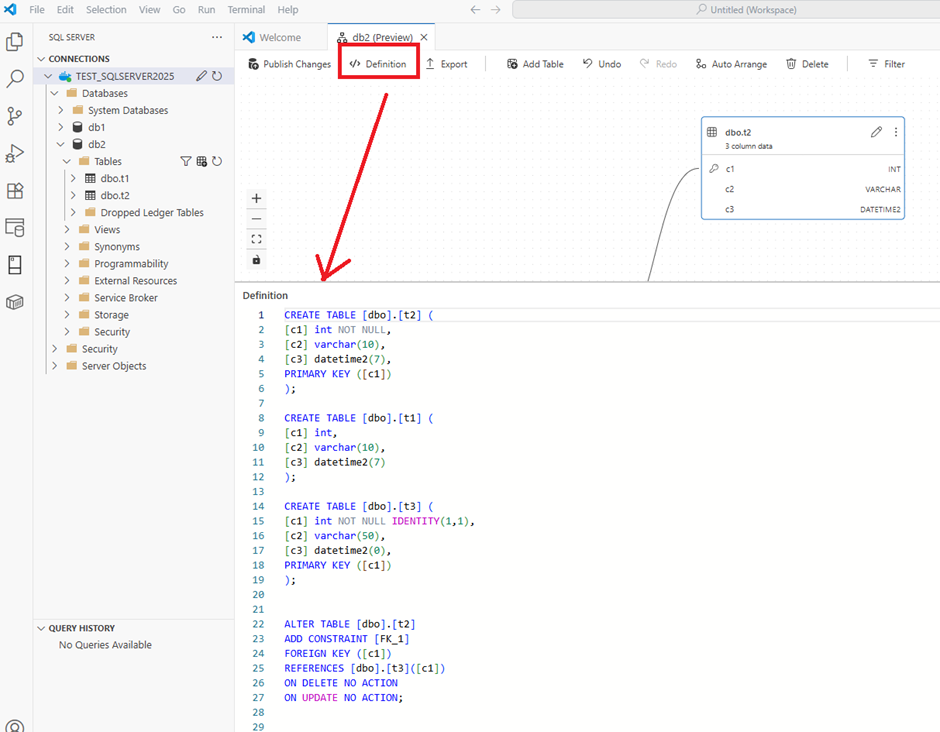

The definition button gives you the design script:

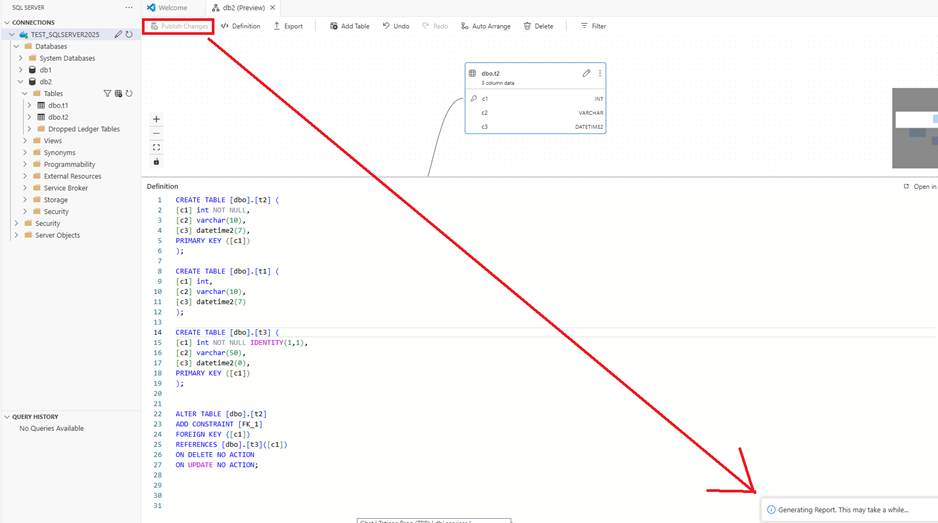

The last button to use is the Publish Changes:

I wait a little bit, and I have the resume of the design change:

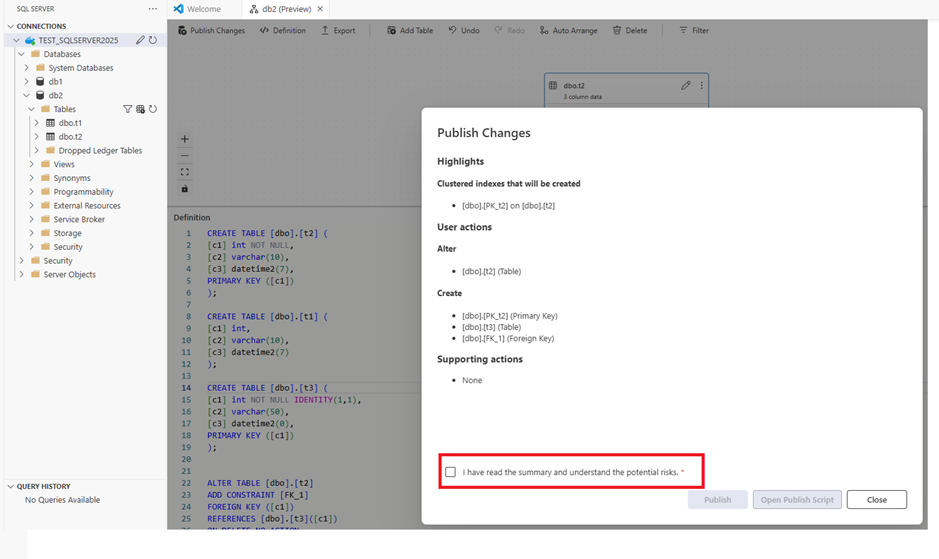

I like the checkbox “I have read the summary and understand the potential risks” and I publish.

It’s just a discovery about the Schema design preview.

It will be a good help for developers.

See you soon for the next episode! 😉
