By Mouhamadou Diaw

Barman is a tool to perform backup and recovery for PostgreSQL databases. It can do backup using two methods:
-rsync/ssh
-streaming
In this blog I am going to explain how to use these two methods to backup a PostgreSQL database. Generally it is a good practice to dedicate a server for barman instead of installing it on the database server. My environment is described below
postgreSQL server: dbi-pg-essentials 192.168.22.101 Centos 7
barman server: pgservertools 192.168.22.104 Oracle Linux 7
postgreSQL version: 11.1
barman version: 2.6
The first step is to install barman on the barman server pgservertools

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
[root@pgservertools network-scripts]# yum install  barman.noarch barman-cli.noarch
Loaded plugins: langpacks, ulninfo
Resolving Dependencies
--> Running transaction check
---> Package barman.noarch 0:2.6-1.rhel7 will be installed
---> Package barman-cli.noarch 0:1.3-1.rhel7.1 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
================================================================================
 Package        Arch       Version             Repository                  Size
================================================================================
Installing:
 barman         noarch     2.6-1.rhel7         pgdg10-updates-testing     300 k
 barman-cli     noarch     1.3-1.rhel7.1       pgdg10-updates-testing      14 k
Transaction Summary
================================================================================
...
...
Installed:
  barman.noarch 0:2.6-1.rhel7         barman-cli.noarch 0:1.3-1.rhel7.1
Complete!
[root@pgservertools network-scripts]#

The installation will create a linux user named barman.
As the rsync method need connections without passwords between two servers for the barman user, we have to configure ssh keys
On the server pgservertools (barman server) let’s create keys with the user barman and then copy the public key to the database server dbi-pg-essentials for the user postgres

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
-bash-4.2$ ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/var/lib/barman/.ssh/id_rsa):
Created directory '/var/lib/barman/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /var/lib/barman/.ssh/id_rsa.
Your public key has been saved in /var/lib/barman/.ssh/id_rsa.pub.
The key fingerprint is:
f4:b7:6b:6e:38:25:ae:be:7f:9a:34:03:a1:1c:a0:ac barman@pgservertools
The key's randomart image is:
+--[ RSA 2048]----+
|    .            |
| . . .           |
|  o   . o        |
| .   . + o       |
|E     o S . .    |
|         .....   |
|         .++.    |
|         .+++.   |
|       .+++Bo    |
+-----------------+
-bash-4.2$
-bash-4.2$ cd .ssh/
-bash-4.2$ ls
id_rsa  id_rsa.pub
-bash-4.2$ ssh-copy-id postgres@dbi-pg-essentials
The authenticity of host 'dbi-pg-essentials (192.168.22.101)' can't be established.
ECDSA key fingerprint is 33:65:38:f4:eb:5b:f4:10:d3:36:7b:ea:5a:70:33:18.
Are you sure you want to continue connecting (yes/no)? yes
/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
postgres@dbi-pg-essentials's password:
Number of key(s) added: 1
Now try logging into the machine, with:   "ssh 'postgres@dbi-pg-essentials'"
and check to make sure that only the key(s) you wanted were added.

If everything is fine, barman should be able to connect to database server as postgres linux user without password

1
2
3
4
5
6
7
-bash-4.2$ hostname
pgservertools.localdomain
-bash-4.2$ id
uid=994(barman) gid=992(barman) groups=992(barman) context=unconfined_u:unconfined_r:unconfined_t:s0-s0:c0.c1023
-bash-4.2$ ssh postgres@dbi-pg-essentials hostname
dbi-pg-essentials
-bash-4.2$

On the database server I also have installed the package barman-cli.noarch which will allow us to use the command barman-wal-archive. We will talk about this later.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
[root@dbi-pg-essentials ~]# yum install barman-cli.noarch
Loaded plugins: fastestmirror
dbipgessentials                                          | 3.6 kB     00:00
edb-repos                                                | 2.4 kB     00:00
…
…
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : barman-cli-1.3-1.rhel7.1.noarch                              1/1
  Verifying  : barman-cli-1.3-1.rhel7.1.noarch                              1/1
Installed:
  barman-cli.noarch 0:1.3-1.rhel7.1
Complete!
[root@dbi-pg-essentials ~]#

rsync backup

As specified earlier in this case the backup is done using rsync. But we have many ways to ship WAL to the barman server. So before talking about barman configuration let’s take a moment to see the WAL shipping
1- With WAL archiving

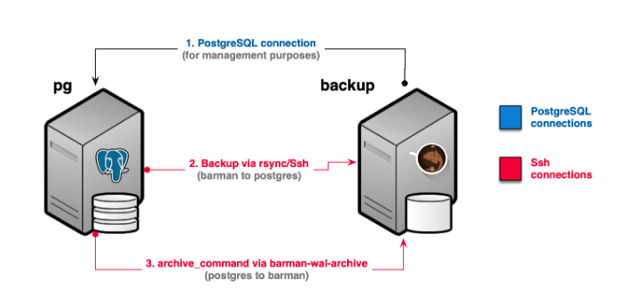

To better understand I put this picture I got from the barman documentation . As we see backup is done via rsync and the WAL are sent via the barman-wal-archive. This utility comes with barman 2.6.
Before barman 2.6 the rsync command was used to send WAL to barman.
In the documentation we can find that using barman-wal-archive instead of rsync/SSH reduces the risk of data corruption of the shipped WAL file on the Barman server.
rsync_1
The use of barman_wal_archive is done via the postgresql.conf file on the database server. It appears on the value of the parameter archive_command. Below values in my postgresql.conf file.

1
2
3
4
[postgres@dbi-pg-essentials PG1]$ grep -E  "archive_mode|wal_level|archive_command" postgresql.conf
wal_level = replica                    # minimal, replica, or logical
archive_mode = on               # enables archiving; off, on, or always
archive_command = 'barman-wal-archive 192.168.22.104 pgserver11 %p'             # command to use to archive a logfile segment

Before barman 2.6 we would use following for archive_command to send WAL to barman server

1
2
archive_command = 'rsync -a  %p  barman@pgservertools:/var/lib/barman/pgserver11/incoming/%f' # command to use to archive a logfile segment
[postgres@dbi-pg-essentials PG1]$

2- With WAL archiving and WAL streaming

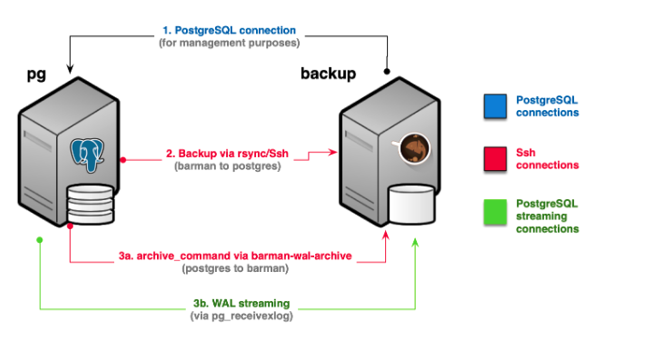

This picture from barman documentation will help to better understand
rsync_2
To use WAL streaming to the barman server, we need pg_receivewal (pg_receivexlog up to PostgreSQL 10) to be installed on the barman server. Be careful of the version of pg_receivewal. In my case I installed the version 11.1 as my PostgreSQL is 11.1

1
2
3
[postgres@pgservertools bin]$ /usr/pgsql-11/bin/pg_receivewal -V
pg_receivewal (PostgreSQL) 11.1
[postgres@pgservertools bin]$

A streaming connection also should be configured and the parameter streaming_archiver should be set to on.
Now to resume let’s say that I want to configure barman with
-rsync method
-using barman_wal_archive and WAL streaming
The barman file configuration /etc/barman.conf should be like

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[postgres@pgservertools bin]$ cat /etc/barman.conf | grep -v  ^\;
[barman]
barman_user = barman
configuration_files_directory = /etc/barman.d
barman_home = /var/lib/barman
log_file = /var/log/barman/barman.log
log_level = INFO
compression = gzip
retention_policy = REDUNDANCY 2
[pgserver11]
description = "Main DB Server"
ssh_command = ssh postgres@dbi-pg-essentials
streaming_conninfo=host=192.168.22.101 user=postgres
conninfo=host=192.168.22.101 user=postgres
backup_method = rsync
streaming_archiver = on
archiver = on
path_prefix=/usr/pgsql-11/bin/
[postgres@pgservertools bin]$

And the postgresql.conf should contain following entries

1
2
3
4
[postgres@dbi-pg-essentials PG1]$ grep -E  "archive_mode|wal_level|archive_command" postgresql.conf
wal_level = replica                    # minimal, replica, or logical
archive_mode = on               # enables archiving; off, on, or always
archive_command = 'barman-wal-archive 192.168.22.104 pgserver11 %p'             # command to use to archive a logfile segment

The first thing is to test that the barman configuration is fine for the PostgreSQL database. The check command should not return any errors. On the barman server with the user barman

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
-bash-4.2$ barman check pgserver11
Server pgserver11:
        PostgreSQL: OK
        is_superuser: OK
        PostgreSQL streaming: OK
        wal_level: OK
        directories: OK
        retention policy settings: OK
        backup maximum age: OK (no last_backup_maximum_age provided)
        compression settings: OK
        failed backups: OK (there are 0 failed backups)
        minimum redundancy requirements: OK (have 0 backups, expected at least 0)
        ssh: OK (PostgreSQL server)
        not in recovery: OK
        archive_mode: OK
        archive_command: OK
        continuous archiving: OK
        pg_receivexlog: OK
        pg_receivexlog compatible: OK
        receive-wal running: OK
        archiver errors: OK
-bash-4.2$

Now we can launch a backup using the backup command on the barman server with the user barman

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
-bash-4.2$ barman backup pgserver11
Starting backup using rsync-exclusive method for server pgserver11 in /var/lib/barman/pgserver11/base/20190215T153350
Backup start at LSN: 0/2E000060 (00000005000000000000002E, 00000060)
This is the first backup for server pgserver11
Starting backup copy via rsync/SSH for 20190215T153350
Copy done (time: 12 seconds)
This is the first backup for server pgserver11
WAL segments preceding the current backup have been found:
        00000005000000000000002D from server pgserver11 has been removed
Asking PostgreSQL server to finalize the backup.
Backup size: 74.1 MiB
Backup end at LSN: 0/2E000168 (00000005000000000000002E, 00000168)
Backup completed (start time: 2019-02-15 15:33:52.392144, elapsed time: 15 seconds)
Processing xlog segments from file archival for pgserver11
        00000005000000000000002E
        00000005000000000000002E.00000060.backup
-bash-4.2$

We can list the existing backup. On the barman server with the barman user

1
2
3
-bash-4.2$ barman list-backup pgserver11
pgserver11 20190215T153350 - Fri Feb 15 15:34:08 2019 - Size: 74.1 MiB - WAL Size: 0 B
-bash-4.2$

Streaming backup

Since the version 2.0, barman supports streaming replication for backup. This method uses the native pg_basebackup
1- Streaming-only backup

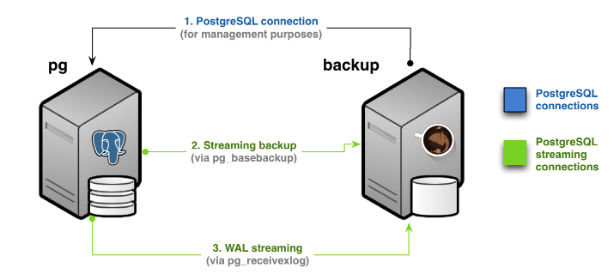

This picture is from the barman documentation may help
stream_1
As we can see, In this case backup are done via streaming. WAL are also using streaming protocol.
2- WAL archiving and WAL streaming

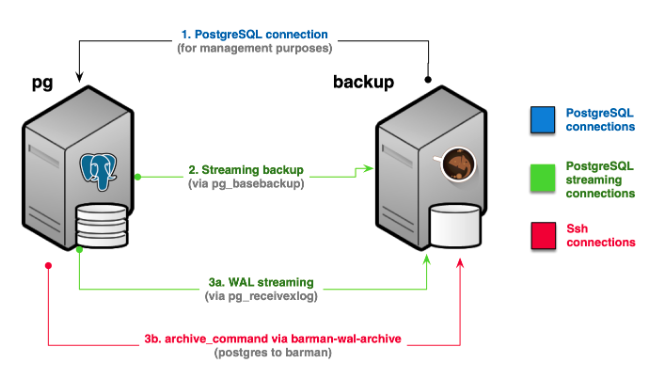

Once again following picture may help
stream_2
In this case we configure standard archiving as well to implement a more robust architecture

For example to implement a barman configuration with streaming backup WAL streaming and WAL archiving, the /etc/barman.conf should be like

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
[postgres@pgservertools bin]$ cat /etc/barman.conf | grep -v  ^\;
[barman]
barman_user = barman
configuration_files_directory = /etc/barman.d
barman_home = /var/lib/barman
log_file = /var/log/barman/barman.log
log_level = INFO
compression = gzip
retention_policy = REDUNDANCY 2
[pgserver11]
description = "Main DB Server"
ssh_command = ssh postgres@dbi-pg-essentials
streaming_conninfo=host=192.168.22.101 user=postgres
conninfo=host=192.168.22.101 user=postgres
backup_method = postgres
streaming_archiver = on
archiver = on
slot_name=barman
path_prefix=/usr/pgsql-11/bin/

and the postgressql.conf

1
2
3
4
[postgres@dbi-pg-essentials PG1]$ grep -E  "archive_mode|wal_level|archive_command" postgresql.conf
wal_level = replica                    # minimal, replica, or logical
archive_mode = on               # enables archiving; off, on, or always
archive_command = 'barman-wal-archive 192.168.22.104 pgserver11 %p'             # command to use to archive a logfile segment

So the check should not return any errors

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
-bash-4.2$ barman check pgserver11
Server pgserver11:
        PostgreSQL: OK
        is_superuser: OK
        PostgreSQL streaming: OK
        wal_level: OK
        replication slot: OK
        directories: OK
        retention policy settings: OK
        backup maximum age: OK (no last_backup_maximum_age provided)
        compression settings: OK
        failed backups: OK (there are 0 failed backups)
        minimum redundancy requirements: OK (have 1 backups, expected at least 0)
        pg_basebackup: OK
        pg_basebackup compatible: OK
        pg_basebackup supports tablespaces mapping: OK
        archive_mode: OK
        archive_command: OK
        continuous archiving: OK
        pg_receivexlog: OK
        pg_receivexlog compatible: OK
        receive-wal running: OK
        archiver errors: OK
-bash-4.2$

And we launch a backup, we can see that barman is using pg_basebackup

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
-bash-4.2$ barman backup pgserver11
Starting backup using postgres method for server pgserver11 in /var/lib/barman/pgserver11/base/20190215T160757
Backup start at LSN: 0/2F0001A8 (00000005000000000000002F, 000001A8)
Starting backup copy via pg_basebackup for 20190215T160757
Copy done (time: 11 seconds)
Finalising the backup.
Backup size: 73.9 MiB
Backup end at LSN: 0/31000060 (000000050000000000000031, 00000060)
Backup completed (start time: 2019-02-15 16:07:57.919595, elapsed time: 11 seconds)
Processing xlog segments from file archival for pgserver11
        000000050000000000000030
        000000050000000000000031
Processing xlog segments from streaming for pgserver11
        000000050000000000000030
-bash-4.2$

Available backups are now

1
2
3
-bash-4.2$ barman list-backup pgserver11
pgserver11 20190215T160757 - Fri Feb 15 16:08:09 2019 - Size: 73.9 MiB - WAL Size: 0 B
pgserver11 20190215T153350 - Fri Feb 15 15:34:08 2019 - Size: 74.1 MiB - WAL Size: 48.3 KiB

To restore with barman, we use the command recover. For example the following command will restore the backup 20190215T160757 on server dbi-pg-essentials_3 in the directory /u02/pgdata/PGRESTORE

1
-bash-4.2$ barman recover --remote-ssh-command "ssh postgres@dbi-pg-essentials_3" pgserver11 20190215T160757 /u02/pgdata/PGRESTORE

Conclusion

In this blog I have tried to explain different scenarios for using barman. We talked about rsync method and streaming methods for backups. Before starting the setup a choice must be done. One can check documentation for more information

Ref: http://docs.pgbarman.org/

Post Views: 4,363
Thumbnail [60x60]
by
Oracle Team
