I had the pleasure to attend this morning (23.10.2018) to the session of Franck Pachot about Microservices. Between 70 and 100 peoples were present in the room to listen the ACE director, OAK table member and OCM speaking about microservices.

Franck Pachot - microservices

Franck introduces microservices based on the fact that customers could want to get rid of their databases.

Getting rid of your database because it’s shared, it contains persistent data and because you query it with SQL could be good reasons. With smaller components you can share less and you can dedicate each component to an owner. With that it mind comes the idea of micro-services. Of course such reasoning has many limits such as the fact that micro-services shouldn’t have data in common.

Usually you query databases with SQL or PL/SQL. However SQL is a 4th generation language and  SQL developpers are rare. SQL is not only too complicated but also not portable. It’s even worse with PL/SQL and T-SQL.

Solution: microservices with easier technology, development offshored. This is precisely what Franck spoke about in his session

Indeed he did a demo with two tables (account and customers tables). He transfered few dollars from one account to another. At first using SQL, then with PL/SQL, JavaScript on the client and then JavaScript in the Database using MLE (Multi Language Engine) and checked CPU time for each of these methods. The results are the following:

  • SQL – 5 seconds of CPU
  • PL/SQL – 30 seconds of CPU
  • JavaScript on client – 2 minutes of CPU (45s on the client and 75 into the database)
  • JavaScript in DB (MLE) – 1 minute of CPU

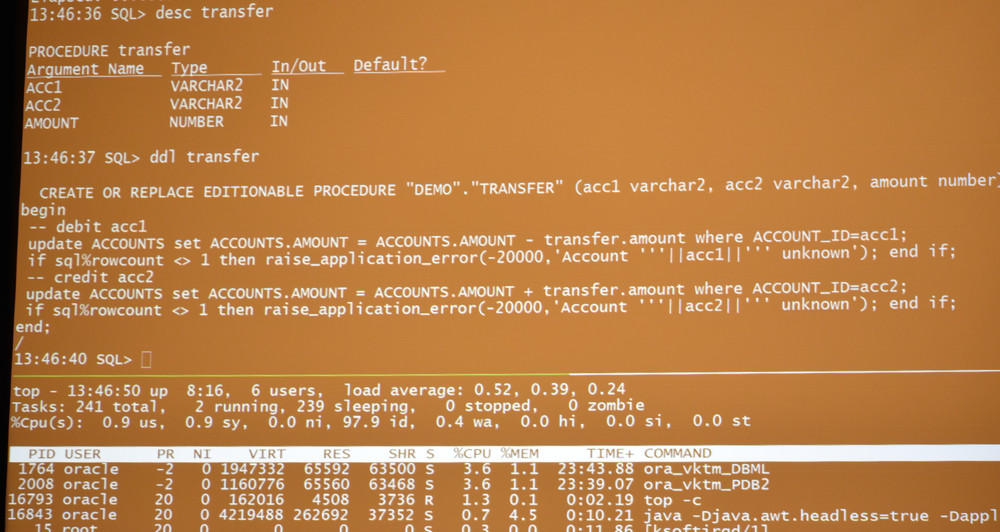

SQL Statement

What is particulary interesting here is that you can think that you will offload the database by executing this statement with java on the client. Such wish could be motivated by decreasing the CPU power and therefore Oracle licensing footprint. However it is exaclty the opposite that Franck proved. You will multiply by at least twice the CPU power required to execute the same operation. Running on through different engine, process, machine does not scale and burns more CPU cycle in each tier.

The difference between SQL and PL/SQL which are running in the same process is due to context switches.

The diffrence betwen SQL and JavaScript on the client is due to context switches on the service, context switch on the client but also network latency.

Even if a context switch is really fast (have a look on to see cost in CPU cycle), Franck (who is working at CERN) explained us that during this time a proton can do a complete round of the CERN Large Hadron Collider (27km).

Anyway it has been really interesting to see that it will be possible in the future to load javascript in an Oracle Database using MLE.
